CANNONDALE MOTERRA LT1 REVIEW

May 31, 2026

The recently updated Cannondale Moterra LT flew a little under the radar at launch due to the recent Avinocalypse. Cannondale isn’t a brand that always makes a big shout with their launches, which is a bit of a disservice to their consistently solid-performing bikes that our crew thoroughly enjoy. In the end though, from its stealthy paint job to the brand’s image and even the character on trail, the silent assassin seems to be an appropriate moniker for the LT1. This long-travel, Bosch CX-equipped enduro eBike did plenty of slaying once we got it onto the trail, offering stellar bump-eating capabilities and a dialled overall ride.

Did Cannondale’s $8,499 165/170mm eMTB do enough to impress our crew as it went up against 15 of the best electric mountain bikes on the market?

These intensive group reviews would not be possible without some amazing partners. Their support ensures our entire crew can ride all these bikes on a variety of terrain to establish real-world data for our audience.

Fox Racing kept the team warm during the odd storm, comfortable on hot days, and ensured we were always looking cool while staying protected.

Schwalbe Tires provided control tires with amazing and predictable performance, and 2 weeks of testing across the 15 test eMTBs with zero flat tires.

We’d also like to thank our destination hosts. We stayed at Glorieta Adventure Camps just outside Santa Fe, New Mexico and we were supported by Sante Fe City and Santa Fe County and their Tourism Dept. Thanks for the hospitality, and you should definitely get down there for yourself!

CANNONDALE MOTERRA LT1 SPECS OVERVIEW

The new Cannondale Moterra LT is offered exclusively in a full carbon fiber frame, knocking an impressive 1,000g (2.2lbs) off of the outgoing model without sacrificing capability. With 165mm of rear Horst link suspension controlled by a coil shock, a 170mm fork and a mixed-wheel setup only, the aggressive intentions of the Moterra LT are clear.

BOSCH CX EBIKE SYSTEM SPECS

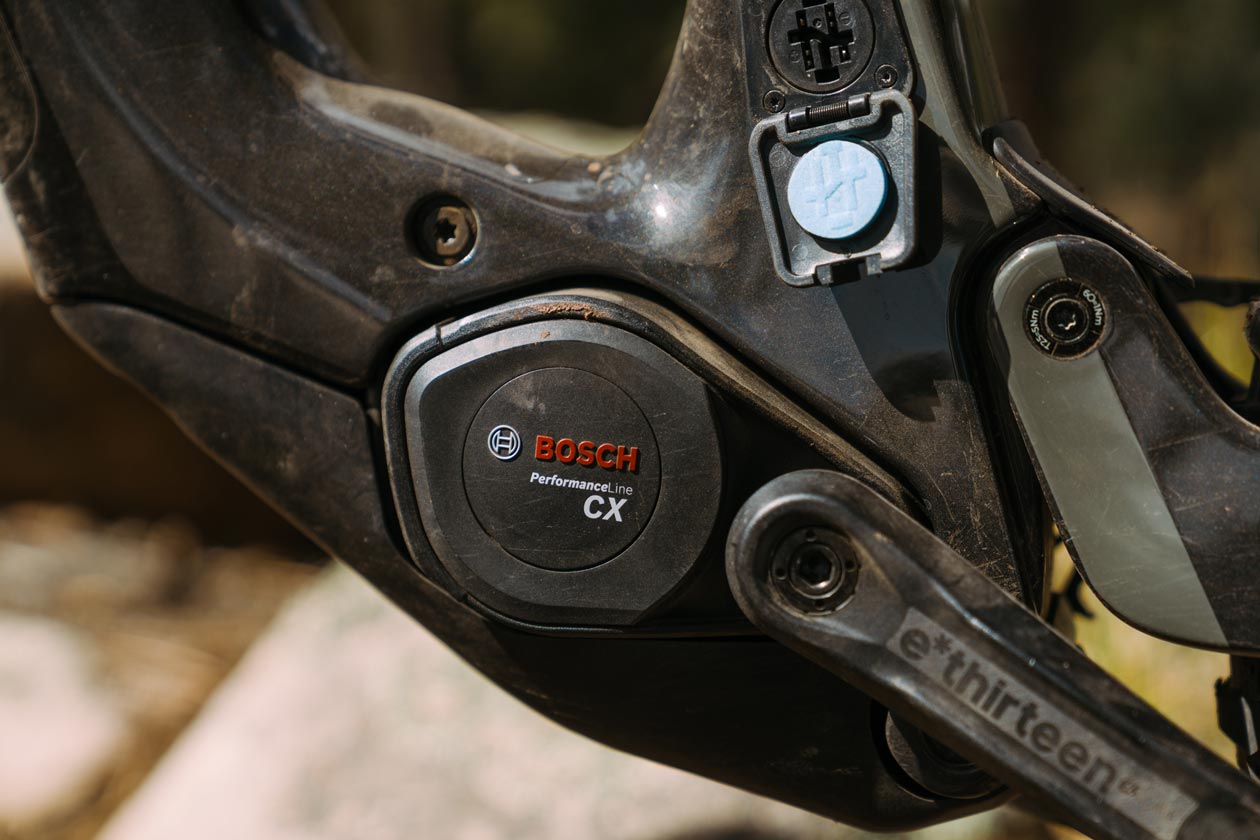

The Cannondale Moterra LT is one of four bikes in our 2026 eMTB Shootout to use the Bosch Performance Line CX BDU38 drive unit. Bosch recently updated the firmware to increase the peak torque output to 120Nm, with 750W Peak Power and up to 600% support from this 2.8 kg (6.2 lbs) drive unit.

Powering the Bosch CX drive unit is a 800Wh battery, which can be easily removed from the downtube of the Moterra LT for off-bike charging or to hot-swap batteries. Riders looking for the most dynamic ride can purchase a 600Wh battery if desired. And for those seeking the biggest range, a 250Wh PowerMore Range Extender can be fitted in place of the water bottle cage.

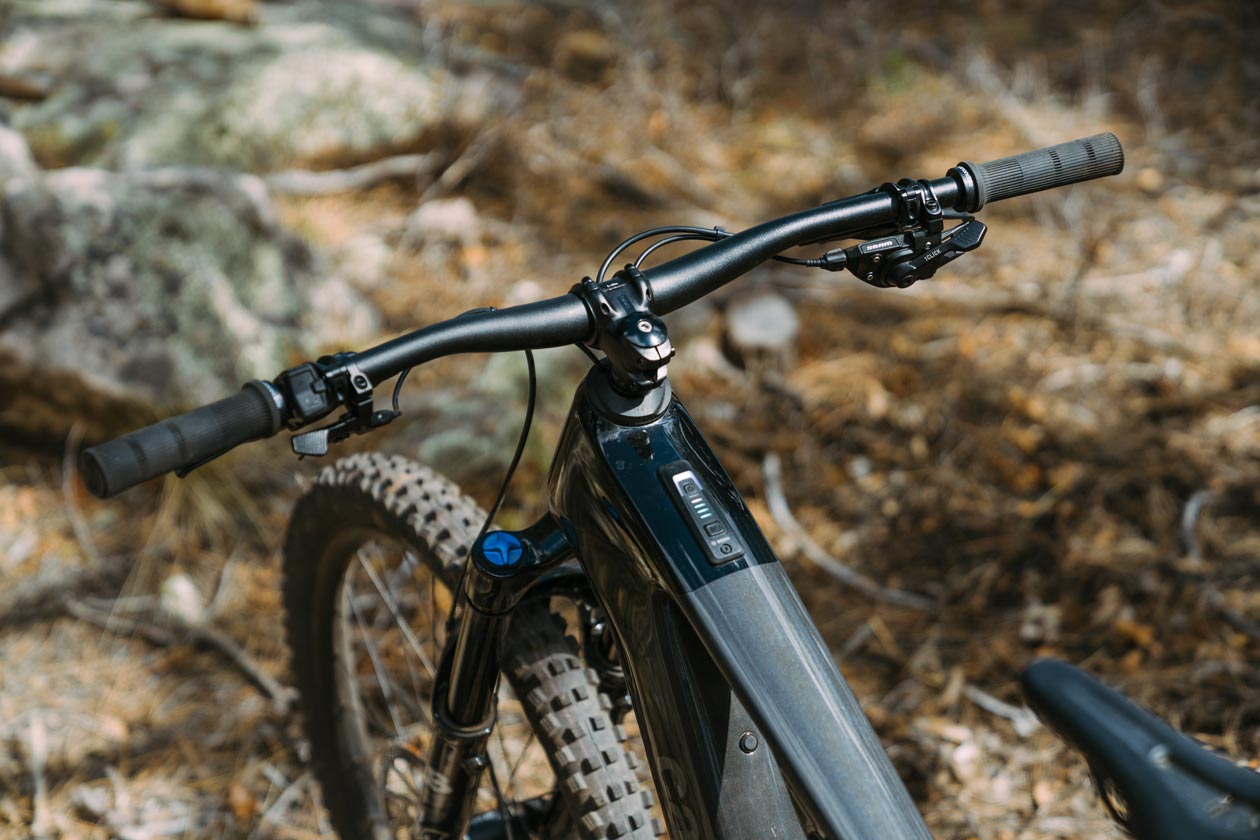

Using the Bosch eBike Flow app, riders can perform updates over-the-air, access security features, and tune the assistance modes to deliver their preferred feel. Cannondale opted to use the simple LED System Controller in the top tube over the Kiox 400C display, so riders interested in a full readout of speed and battery to the nearest percent must use the app and potentially mount their phone to the bars. On the left side of the bar, the Bosch wireless Mini Remote allows the assist mode to be changed and Walk mode to be activated.

Using the 4A Bosch charger, the 800Wh battery can go from empty to full in around 6 hours. A 12A Bosch fast charger is scheduled to be available to purchase at the end of 2026. This should cut top-ups of 50% charge down to just an hour.

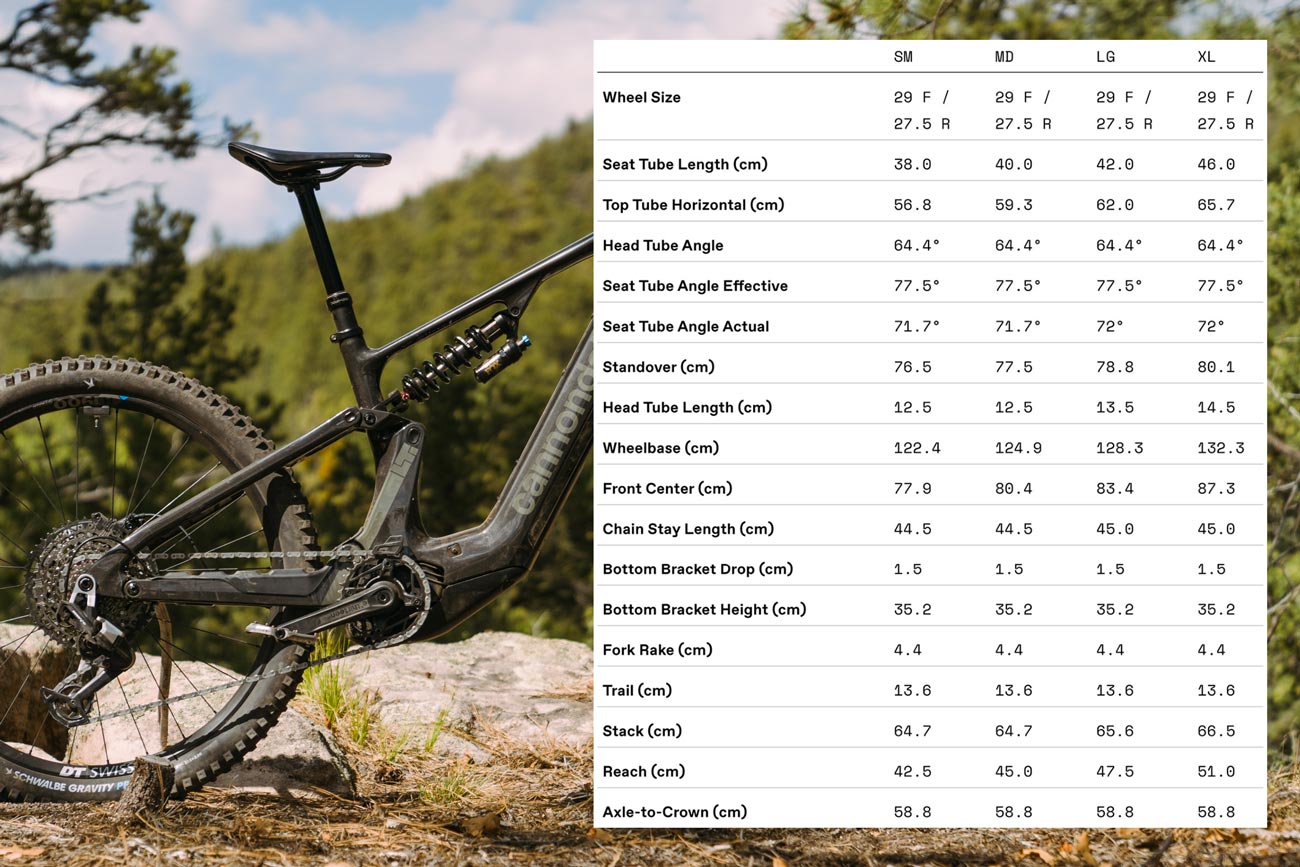

CANNONDALE MOTERRA LT1 GEOMETRY

Cannondale gave the Moterra LT a fairly agile geometry package for its travel class, with a conservative 64.4° head tube angle and moderate 475mm reach on the size large, tested. With a 450mm rear end and relatively tall 656mm stack height, the fit and balance were solid for our 5’10” to 6’2” (178cm to 189cm) crew.

Size-specific kinematics are provided thanks to Cannondale’s Proportional Response tuning, which should ensure riders are given optimized handling proportionate to their body size.

CANNONDALE MOTERRA LT1 BUILD OPTIONS

Currently, Cannondale is offering the Moterra LT exclusively in the LT1 build, with a retail price of $8,499. This build kit provided impressive performance throughout, with no reason to complain aside from Cole’s wish for a longer travel dropper post. That said, the value proposition was questionable compared with some of the bikes in our test.

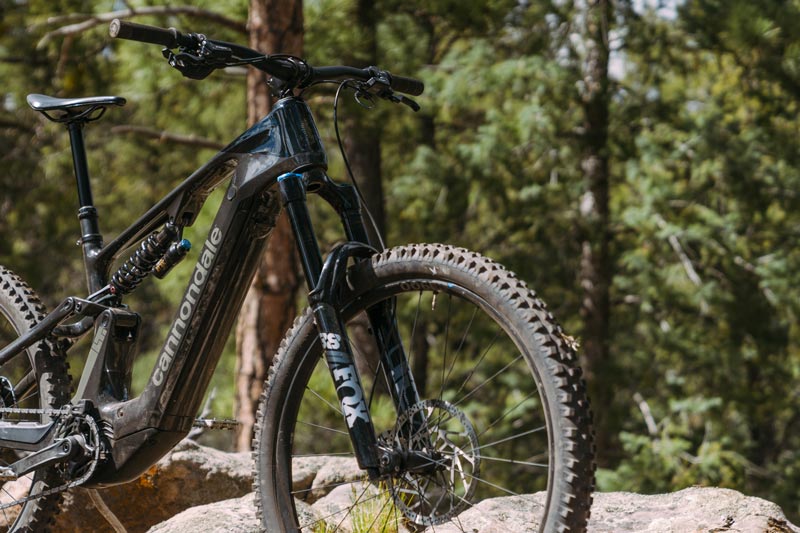

The Fox Performance level 38 170mm fork and DHX coil shock offered limited adjustability but proved to be solid performers for our mid-weight crew. Riders on the heavier end of the spectrum may wish for increased compression damping, which would necessitate a custom shock tune but the flip side was an incredibly smooth and buttery rear end that instilled confidence and comfort on new trails.

The SRAM Eagle 90 T-Type drivetrain was flawless, and the TRP EVO Pro brakes stopping on a 220mm front and 203mm rear rotor were stellar, if not quite matching the power of the SRAM Maven, they were at least more reliable and less finnicky. Cannondale’s in-house alloy cockpit and DownLow dropper post were not flashy, but got the job done suitably well.

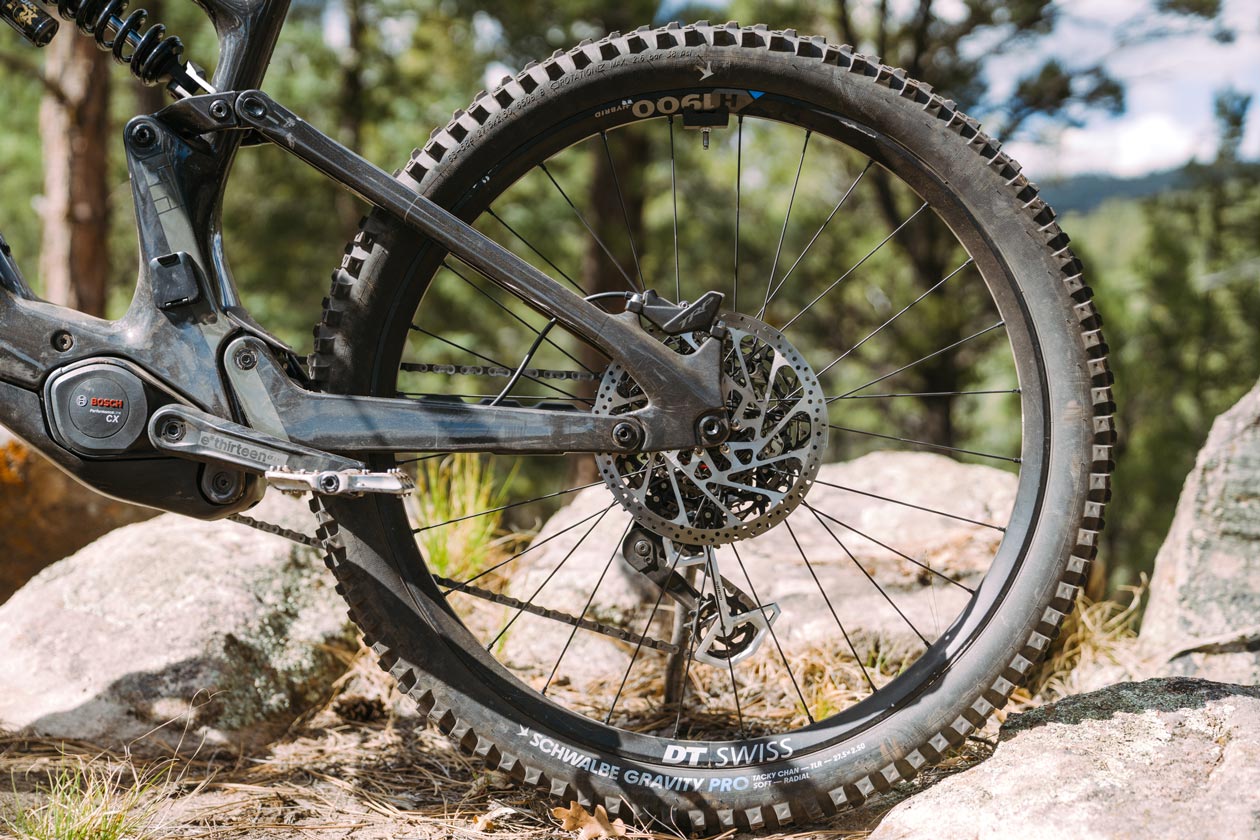

Rounding out the specs were the stellar DT Swiss H 1900 Spline wheelset, wrapped in the hyper-aggressive Schwalbe Shredda Front tire and a Schwalbe Albert in the rear as standard. As with all of the bikes in our 2026 eMTB Shootout, these were replaced with a Schwalbe Tacky Chan Gravity Pro and Magic Mary Gravity Pro tire combination to ensure consistency across the test fleet.

The Cannondale Moterra LT1 in size large weighed 55.9 lbs with our Schwalbe control tires.

BOSCH CX DRIVE UNIT PERFORMANCE

• Pure Power: The tuning selected by the rider can greatly change the feel of the Bosch CX unit. It can give a more natural feel with less artificial assistance, or it can speed you up the hill with an effortless soft-pedal. At 750W, there’s no getting around the power debate, which may matter to power hounds, but we never failed to make a climb due to a lack of power.
• Control: Bosch’s Flow app gives riders a lot of control over the amount and delivery of power as well as the feedback and responsiveness. Bosch do a good job of providing a capable motor, however we did notice that on the most extreme of technical climbs in the Turbo power mode, traction and power aren’t quite on par with Avinox. Similarly, the reactiveness of the system doesn’t quite seem as quick. Bosch do have updated torque, cadence and acceleration and tilt sensors, yet the wheel speed magnet is still mounted at the valve stem and has a slower response than the rotor-mounted systems.
• Perceived Efficiency: Our crew believed that the Bosch system was one of, if not the most efficient when power was set to our default efficiency test mode. We set the units to 750W of power and 100 Nm for this test, and the Bosch was a top contender. However, the numbers were close enough that human effort or a bike’s suspension platform and even line choice could have made the difference. Either way, it’s a solid performing system if you tune it right.
• Noise Up and down: Acoustics vary based on each frame because of material, tube shapes, and other efforts to control noise. That said, the Bosch is quiet on the way down, however it does have a more electronic humming pitch to it than the Avinox and Specialized 3.1 drive unit. It’s not at nuisance level, but, at certain power modes and loads, it is certainly noticeable.
• Ecosystem: The Bosch ecosystem is very good, and if Avinox didn’t exist it’d be great…The reality is that Avinox does exist though, and the lack of a touchscreen on Bosch’s premium Kiox 400C – which this bike doesn’t even have – solidify that Bosch-equipped bikes aren’t the “techies” wet dream. Does that affect how well the bike rides or would it prevent us from buying or recommending it? Not in any way, we’re big believers of “buy the best MTB first, e-tech second”. It would still be nice to see Bosch catch up, however.

CANNONDALE MOTERRA LT1 CLIMBING PERFORMANCE

Our crew felt the Moterra was one of, if not the most comfortable climbing eMTB in this year’s shootout. It’s an all-around beast on the way up and that’s something that Drew appreciated in particular. He was able to conquer some of the gnarliest and most-unbelievable climbs of the shootout aboard this bike. The geometry wasn’t inhibiting on the steep, ledgy climbs, the traction and suppleness from the rear end meant traction could be found anywhere, and even if you prefer to sit and spin your way up mellow fire roads, the Moterra LT will still please.

CANNONDALE MOTERRA LT1 DESCENDING PERFORMANCE

Whether you love to Billy Goat your way to the top or cruise up a service road, the best part of the Cannondale Moterra LT’s performance is the downhilling capabilities. The LT’s long travel is buttery smooth. In fact we went up a spring rate after the first ride just to get a bit more support out of it, as the bike had such a pillowy feel that our riders wanted a bit more feedback for pushing off.

With the stiffer spring installed, the bike came alive a bit more and blended a supple, sensitive rear end with the confidence to tackle any type of terrain. Some riders were a bit more stoked than others, but that’s normal these days. Different brands design bikes with traits and rider styles in mind. The more playful riders felt an air shock or even stiffer spring rate would have helped liven the bike up further, whereas our other riders loved the plush rear end and how it extended their max efforts on the chunky downhill test tracks by reducing fatigue. However the 55.9lb weight didn’t always help our argument in reducing rider fatigue, as the bike did feel a bit heavy when combined with the soft suspension feel. These two factors likely contributed to the approval rating based on different rider types.

Suspension can be adjusted pretty easily, but dropping significant weight off this bike would take a bit more effort and money. Even so, we suspect that unless you’re trying to ride like Josh Bryceland, you’ll be happier than a rat in a cheese factory aboard the Moterra LT. And for what it’s worth, Josh doesn’t exactly struggle to ride this long travel eBike.

HOW DID IT COMPARE?

Cannondale’s Moterra LT is one of the most plush and comfortable bikes both up and down the hill. Some of the lighter and more playful riders felt it was a bit sluggish on playful trails, but agreed that it offers some great cushion for the pushin when things get rough compared to some bikes that offer a bit more feedback on extended rough descents. The value debate is certainly one to consider as while it offers a capable and reliable spec, number crunchers will likely find other bikes with a better spec-to-dollar ratio.

The Wolf’s Last Word

If you are a rider who is looking for a well-rounded longer travel eMTB that is cushy and offers a muted feel over the roughest terrain, the Moterra LT1 could be a great contender. Riders looking to be overly active and jumpy may need to take more time to adjust the suspension or search for ways to drop some weight, but there’s no denying that this bike is a lot of fun and delivers a unique ride experience.

WHO SHOULD BUY THE CANNONDALE MOTERRA LT?

A rider who prefers comfortable, plush suspension for big mountain epics, and a rider who wants to climb techy trails with ease, prioritizes traction and suppleness, and the likes the reliable Bosch powertrain.

Price: $8,499
Weight: 57.2 lbs / 25.9 kg (As Tested)
Website: Cannondale.com
