CANYON SPECTRAL:ON CF8 REVIEW

June 1, 2026

Back on the market after a recall-induced hiatus, we were reminded how fun the Canyon Spectral:ON is during the creation of a recent Dissected feature. Canyon’s do-it-all full power eMTB may be a few years old at this point, but with price tags that have dropped significantly, we wanted to include it in the search for the best value eMTB on the market in 2026, to see how it stacks up.

Could the new 800Wh battery within this trail-friendly carbon fiber frame present the most compelling purchase in its price class? We were excited to find out as we hit the trails of Glorieta, New Mexico.

These intensive group reviews would not be possible without some amazing partners. Their support ensures our entire crew can ride all these bikes on a variety of terrain to establish real-world data for our audience.

Fox Racing kept the team warm during the odd storm, comfortable on hot days, and ensured we were always looking cool while staying protected.

Schwalbe Tires provided control tires with amazing and predictable performance, and 2 weeks of testing across the 15 test eMTBs with zero flat tires.

We’d also like to thank our destination hosts. We stayed at Glorieta Adventure Camps just outside Santa Fe, New Mexico and we were supported by Sante Fe City and Santa Fe County and their Tourism Dept. Thanks for the hospitality, and you should definitely get down there for yourself!

CANYON SPECTRAL:ON CF8 SPECS OVERVIEW

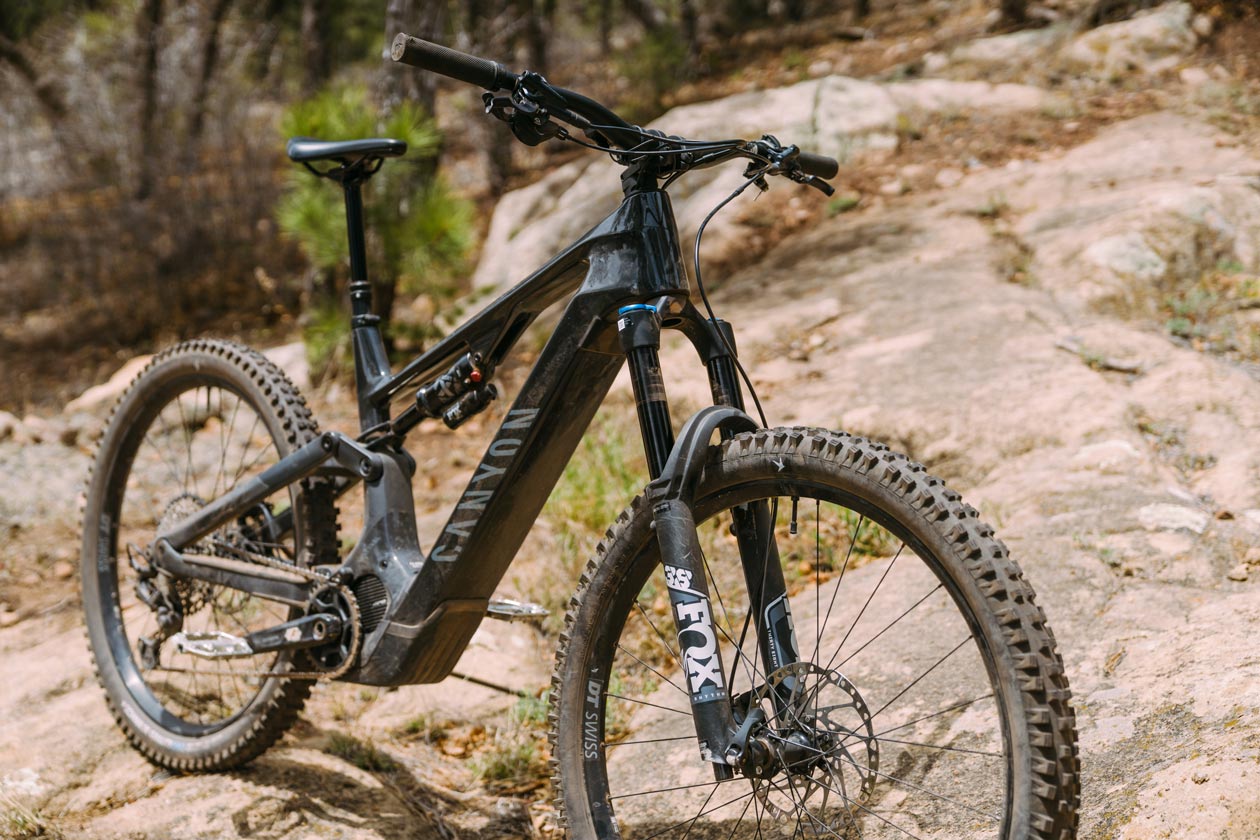

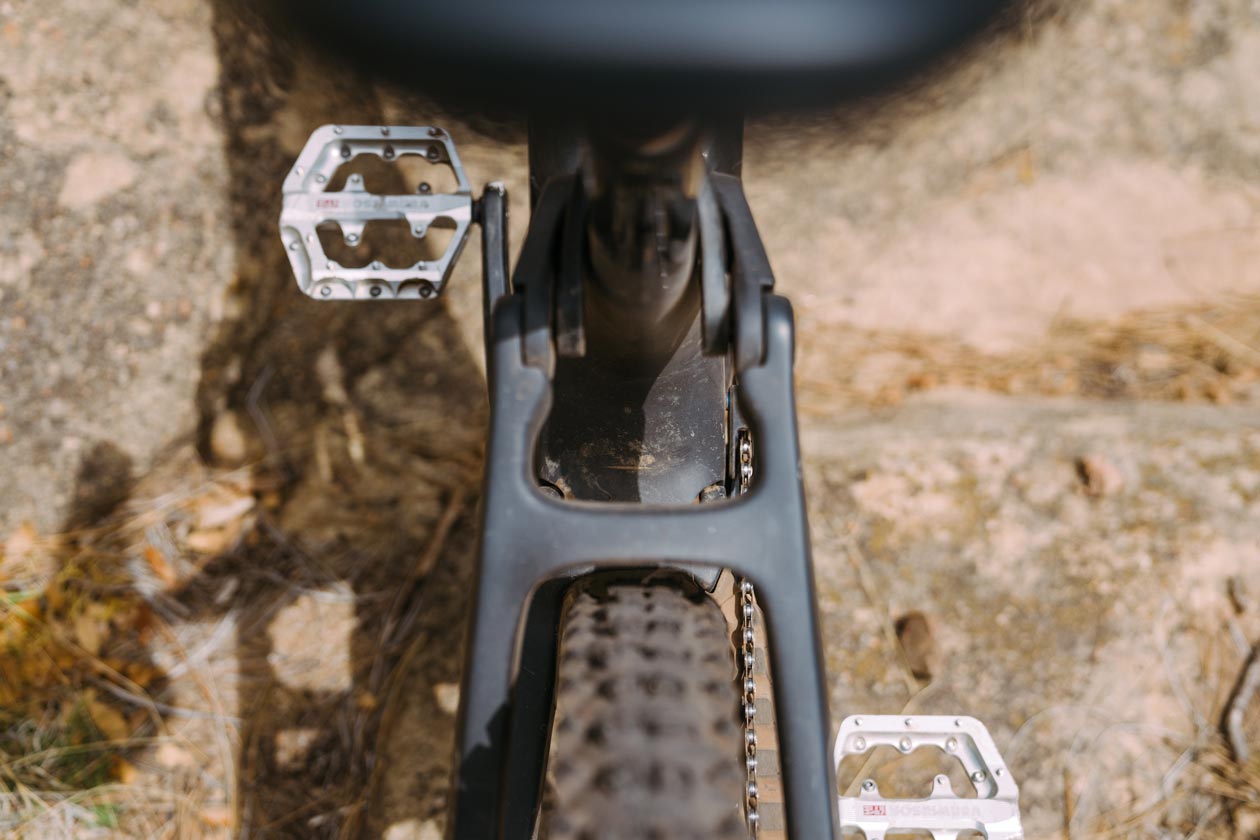

The Canyon Spectral:ON CF is manufactured from carbon fiber, giving a Category 4E-rated frame that tips the scales at 3.18kg (7lbs). The Spectral:ON uses a mixed-wheel setup only, with a 155mm four-bar rear end. Focusing on a low center-of-gravity design with the horizontal battery cell architecture, Canyon’s goal was to produce a full-power eMTB with plentiful agility on trail.

As the only Shimano EP801-equipped eBike in this year’s test, we were interested to see how the system would stack up to the latest and greatest drive units on the market.

SHIMANO EP801 EBIKE SYSTEM SPECS

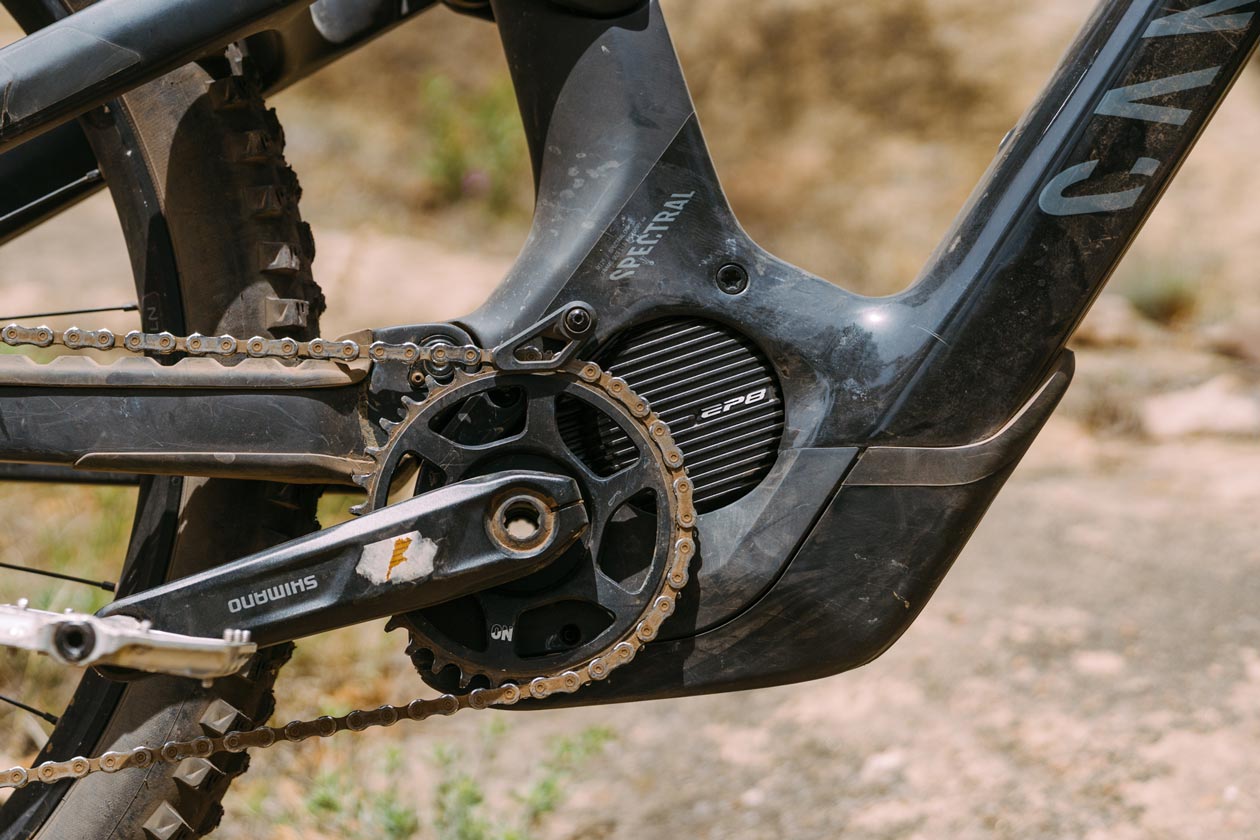

The Canyon Spectral:ON is built around the Shimano EP801 drive unit. This 2.7kg (5.95 lbs) drive unit produces 85Nm maximum torque and 600W peak power with 400% assist – numbers considered excellent just a few years ago, but now being left behind in the power race.

The EP801 is powered by a custom aluminum-housed 800Wh battery weighing 4.65 kg (10.25 lbs), developed by Canyon to offer next-gen power in a robust and removable design. The battery can be easily removed from the Spectral:ON for transport and off-bike charging, and has been given extra safety certification and a double-sealed design to ensure customer confidence and safety. There is no range extender available for this system.

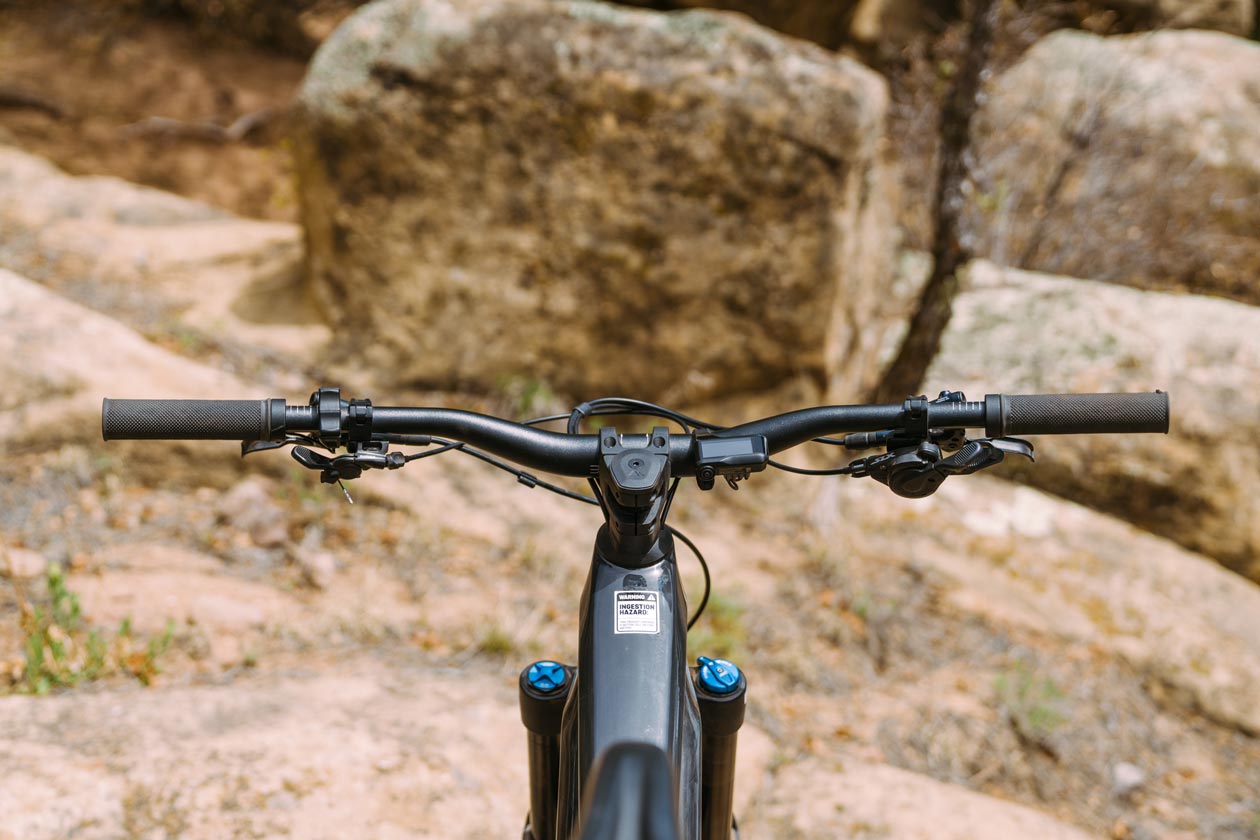

On the left side of the handlebars, the classic Shimano wired two-button remote allows the rider to select the power mode and to use walk mode. The small EM800 display screen is mounted to the bars to display key ride information.

Using the Canyon app, riders can use the GPS locator in the bike to track rides as well as offer tracking and an alarm function for security. Using the Shimano E TUBE app, the rider can connect to the system to tune the power mode and ride profiles, and to upgrade the firmware over-the-air.

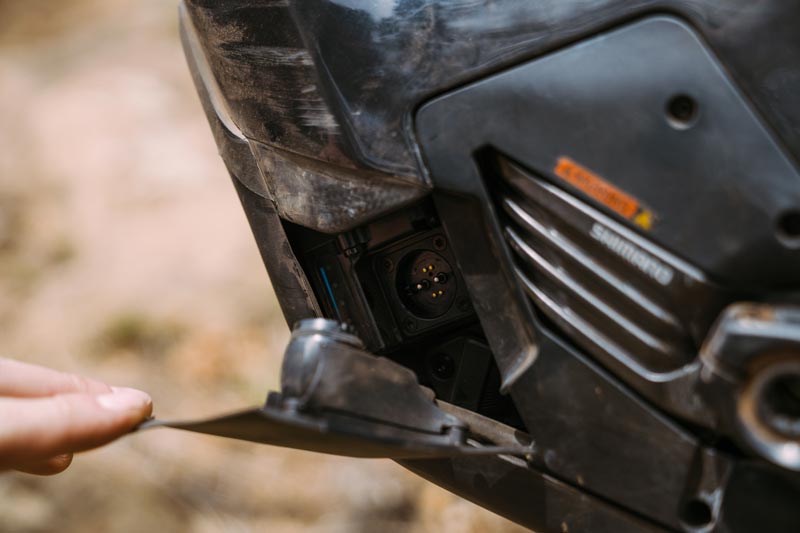

With the new smart battery and a 5.6A smart charger, the 800Wh battery can be full charged in 5 hours from empty, with a smart trickle charge function to optimize battery longevity.

CANYON SPECTRAL:ON CF8 GEOMETRY

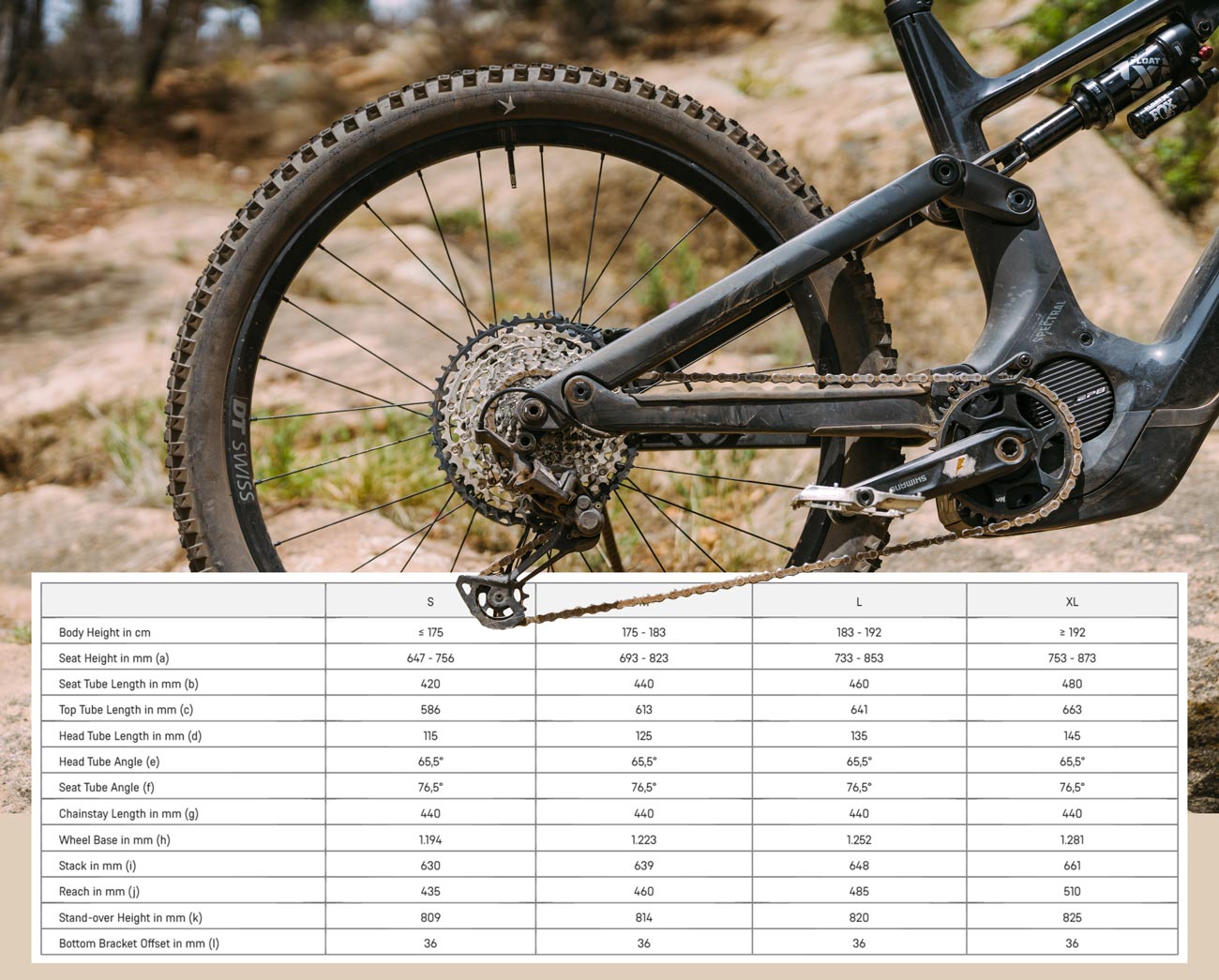

The Canyon Spectral:ON is given a solid all-around eMTB geometry package, with no major stand out numbers. Our 5’10” to 6’2” (178cm to 189cm) crew tested the size large, and found the fit to be comfortable, with its 485mm reach and 648mm stack giving a suitably roomy cockpit.

CANYON SPECTRAL:ON CF8 BUILD OPTIONS

Canyon offers the Spectral:ON in a range of builds from the $5,299 CF 7 (on sale for $3,899 at the time of writing) to the CFR at $9,499 (currently $6,949). We tested the Canyon Spectral:ON CF8, coming in at $5,999 (currently $4,499), and with a solid build spec that presented little reason to complain.

We suspect that these sale prices will be the new MSRP until inventory is cleared and would be the only price that we’d recommend buying these bikes at.

A Fox 38 Rhythm 160mm fork and Float X Performance shock combination offered limited adjustability, but delivered solid performance.

Shimano’s SLX M7120 brakes and mix of Deore, XT and SLX drivetrain were dependable and consistent. Canyon’s in-house alloy cockpit and Iridium dropper post performed amicably.

Rounding out the specs, a DT Swiss HLN350 wheelset was wrapped with a Maxxis Assegai EXO 2.5” front and Minion DHR 2 EXO+ 2.6” rear tire combo. As with all of the bikes in our 2026 eMTB Shootout, these were replaced with a Schwalbe Tacky Chan Gravity Pro and Magic Mary Gravity Pro tire combination.

The Canyon Spectral:ON CF8 in size large weighed 55.4 lbs (25.1 kg) with our Schwalbe control tires.

SHIMANO EP801 DRIVE UNIT PERFORMANCE

• Pure Power: Not long ago the amount of power coming out of this drive unit was considered cheating and “excessive.” Now it seems consumers are wanting even more, though we suspect the rubber band is fully stretched at the moment and will be snapping back closer to the 100Nm mark very soon. That said, there was no situation in which we couldn’t make it up a climb due to the power output of the STEPS EP801 drive unit. It has more than enough power for our riders and while it is undeniably lacking compared to other units with much higher numbers, it does the job.
• Control: The EP801 is not quite as refined as the newest crop of units. The evolution is happening fast and while the E Tube app does allow for some customization, the unit doesn’t quite have the sensitivity of the new Avinox system.
• Perceived Efficiency: It’s requires more effort to check on the efficiency of the Shimano unit as there is no real data around battery consumption beyond bars, which represent 20% increments. Far from accurate when other units are giving digital percentages in 1% increments. That said, the unit puts out less power, as such it does a good job of providing solid range for the battery size.
• Noise Up and down: The unit has a bit of an electrical whine to it but it wasn’t overly distracting. On the way down the drive unit has a bit of rattle that is more noticeable on certain types of terrain and chatter.
• Ecosystem: It’s capable, far from cutting edge but it works. It’s sort of like getting into a 5 year old Toyota, there’s no bells or whistles and it looks behind the times, but it still gets the job done.

CANYON SPECTRAL:ON CF8 CLIMBING PERFORMANCE

Our crew of testers felt pretty good on the Spectral:ON, no matter which direction it was pointed. On the way up however the bike had a comfortable feel, a nice suspension feel and a capable geometry set that had it blending in with the pack.

When it came time to race up the test climb, the Shimano-powered Spectral:ON was a little bit behind, but not the point that it was a major hindrance to riders who used to remember what it was like climbing with people of various fitness levels. The fast guys got up quickly and chatted, the slower guys got up when they did. And we all waited and descended together, remember the good ‘ol days? Well, you could still live them aboard the Spectral:ON. Just blame your slightly slower climb time on the weight of all the extra cash in your pocket, weighing you down because you got such a killer deal.

CANYON SPECTRAL:ON CF8 DESCENDING PERFORMANCE

Impressions on the descending and handling capabilities of the Spectral:ON ranged from good to really good. Drew went on record multiple times saying that of all the Sub-$6,000 eMTBs in the shootout, this was the one he could ride hardest and felt most comfortable on. It rode the most like a premium eMTB in his opinion.

Some other testers like Kyle (160lbs), felt the bike was good in the chunk and very capable, but wasn’t overly inspiring in terms of playfulness and fun. The rest of the riders sat somewhere in the middle, agreeing the Spectral:ON was a fun and capable bike that handled the terrain well.

With some riders finding the bike slightly less agile and playful than Drew, the team agreed that the composure through big hits and cornering feel are solid.

The Wolf’s Last Word

Compared to other bikes in the budget category, the Spectral:ON is an interesting machine. The elephant in the room is the employment of the Shimano EP801 drive unit. While all our riders agreed that the unit offers sufficient power doesn’t detract from the performance of an otherwise solid all-around eMTB, there is a serious conversation potential customers need to have with themselves, and possibly with Canyon or Shimano. (see comment below)

If we don’t look at the drive unit topic and focus on the performance of the Spectral:ON as a mountain bike, it is a very competent and capable bike. While some testers really enjoyed the playfulness and ways the bike rode, others still agreed it was a bike that felt at home on a variety of terrain and would be a solid option for riders looking for a long-legged trail eMTB that doesn’t require a full-blown E-enduro race machine.

WHO SHOULD BUY THE CANYON SPECTRAL:ON CF8?

Riders who are willing to take a chance on the Shimano system for the sake of having a really solid riding Canyon Spectral and a solid build kit. If you don’t have to have the latest tech, want a bike that will corner well, has a nice suspension feel and is ready to take whatever you throw at it, the Spectral:ON could be an option.

We reached out to ask about our concerns in recommending this bike and support for customers. The VP of Marketing and Sales at Canyon, Devin Riley, had this to say:

“We have a direct service relationship with Shimano that helps ensure parts availability and timeliness in service. That means we can route all Shimano STEPS drive unit issues through not only Shimano’s certified service network, but also through our more than 270 REI locations and independent dealers, all certified as Canyon Authorized Service Partners. With these networks in play across the US, customers have more local access to qualified support than ever before.”

Price: $5,999 ($4,499 On Sale)
Weight: 55.4 lbs / 25.1 kg (As Tested)
Website: Canyon.com
