PIVOT SHUTTLE LT SPECS OVERVIEW
The Pivot Shuttle LT continues to be the long-travel bruiser in their eBike lineup, with 162mm (or 165mm depending on configuration) of DW-Link rear suspension and a mixed-wheel only setup in their Hollow Core carbon fiber frame. Pivot opted to use the Bosch Gen 5 CX (Ride level build) and CX-R (Pro and Team) drive unit to power the latest Shuttle LT dependably. As you would expect with a Pivot bike, there is a high-quality finish with the details well covered throughout.

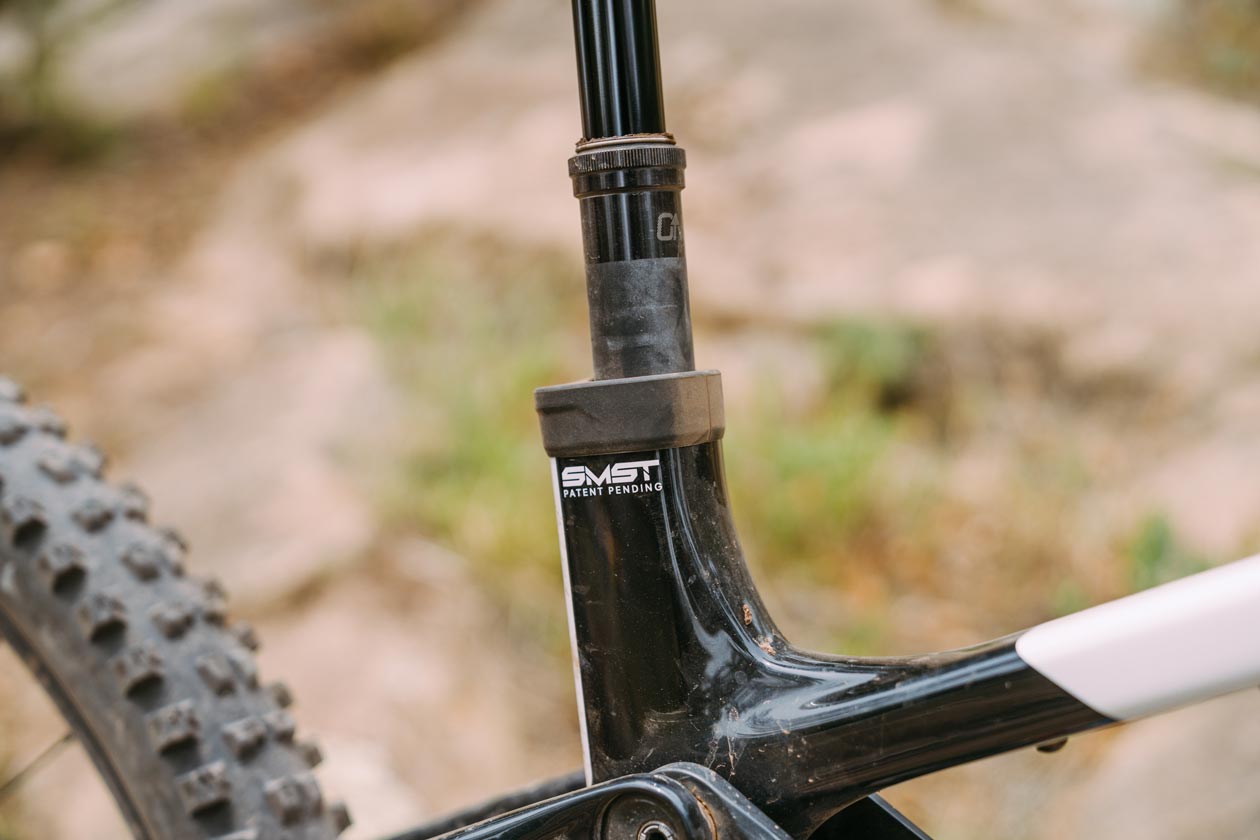

The new Shuttle LT features adjustability in just about every area you could think of, plus one that we didn’t expect to see, an adjustable seat tube angle. Pivot’s Slacky McSteepTube system allows riders to tune the seat tube angle by 1.5 degrees, which is a pretty significant change and one not many, if any, other brands are offering. Pivot is also pleasing armchair critics with their chainstay length adjustment via their Swinger dropout which gives riders a long and short rear end option to better suit your terrin. There’s also a geometry flip chip to tune the head angle and bottom bracket height, and a suspension progression flip chip, so the handling can be tweaked for both up and down the hill. If that’s not enough, rounding out potential adjustability is the ZS56 head tube, which allows for an angleset or reach-adjust headset to be fitted for further tweaking.
BOSCH CX-R EBIKE SYSTEM SPECS

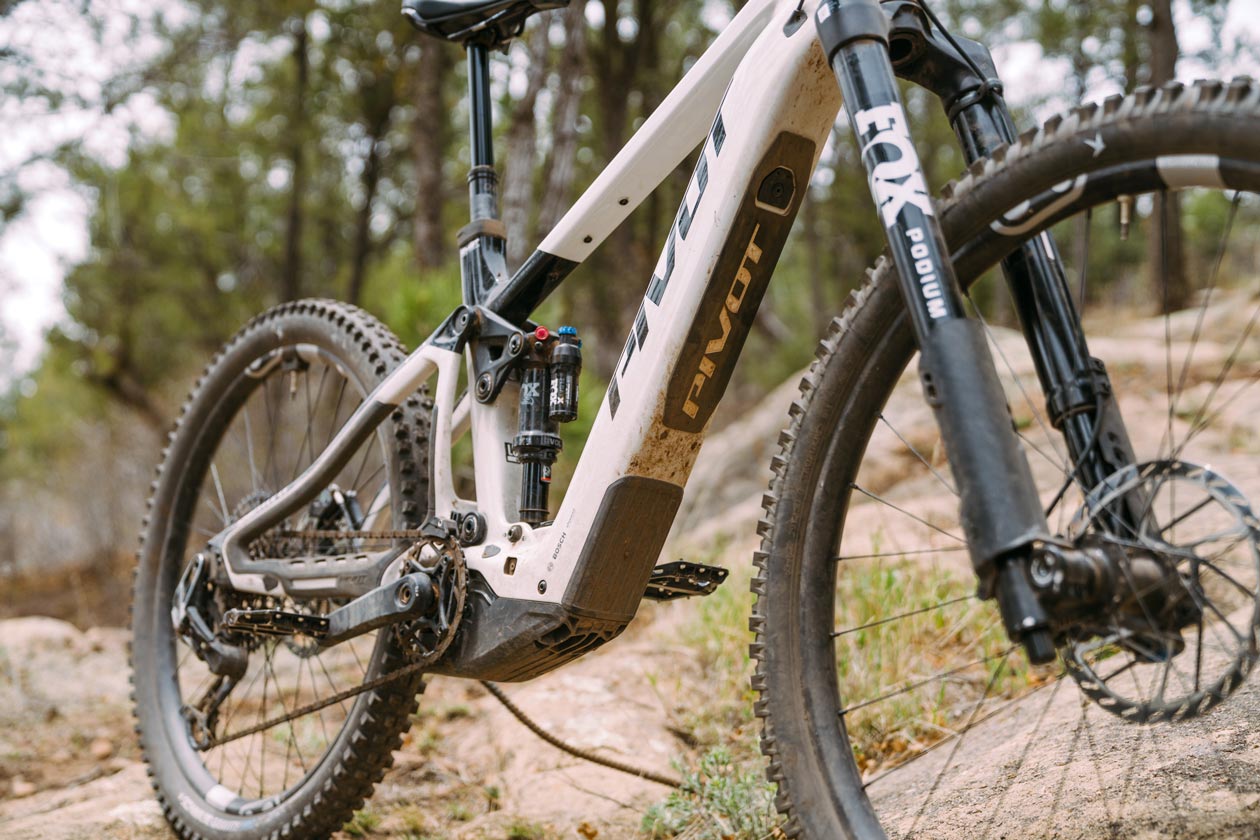

The Pivot Shuttle LT is fitted with the Bosch Performance Line CX Gen 5 drive unit in the Ride spec level, with the Pro and Team level builds receiving the Bosch CX-R. With the recent firmware update on the Bosch system, the peak torque of these drive units increased to 120Nm, with 750W Peak Power and up to 600% support. The CX weighs in at 2.8 kg (6.2 lbs), while the titanium crank spindle and ceramic bearings drop the CX-R to 2.7 kg (5.95 lbs) and spin more smoothly.
The Pivot Shuttle LT features a removable 800Wh battery across all build specs and sizes. This removable battery allows the user to purchase a second battery to hot-swap or to charge the battery off the bike. It is mounted with Pivot’s Floating Battery tech, which allows the frame to flex independently. Riders looking for a lighter overall weight can purchase a 600Wh battery, and riders seeking maximum range can use a 250Wh Bosch PowerMore Range Extender.

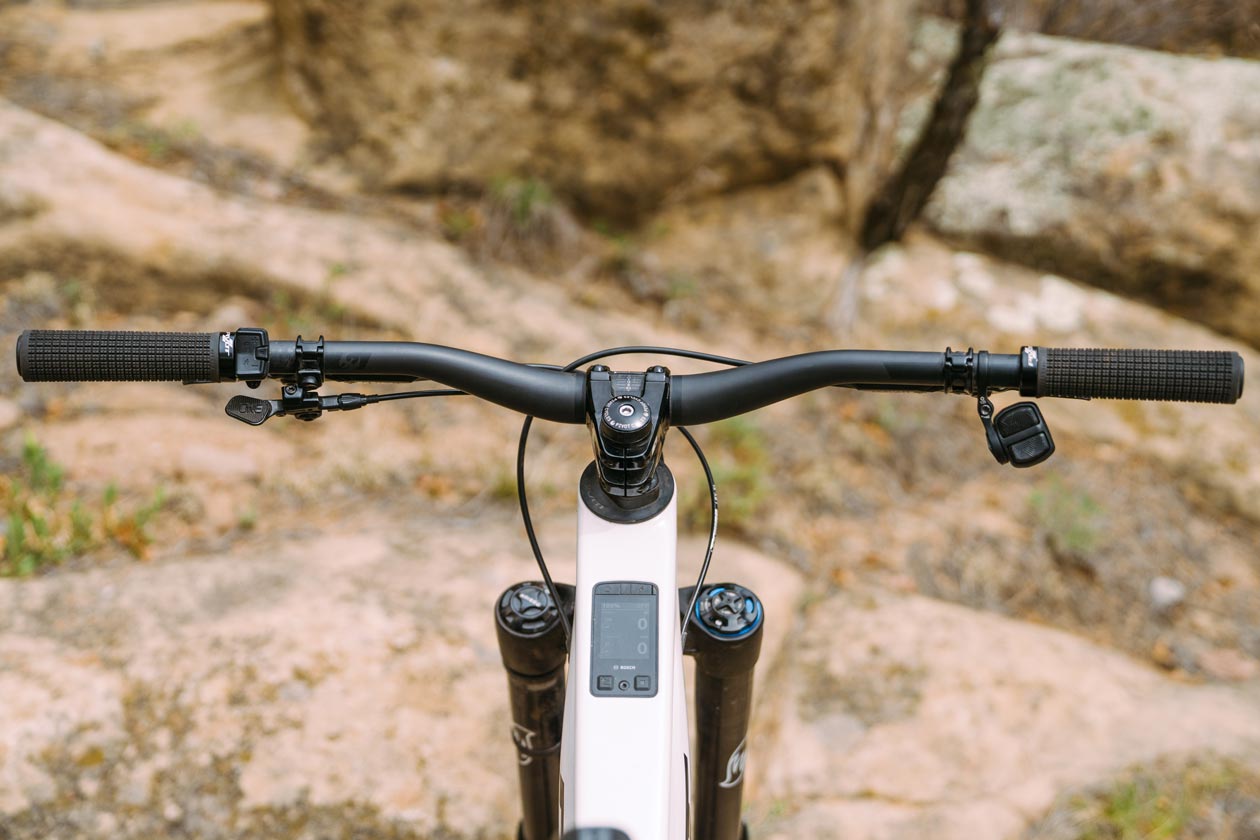

The Kiox 400C display is fitted to the Shuttle LT and displays key ride data with a clear and crisp color screen. On the left side of the bar, the Bosch wireless Mini Remote toggles between power modes and enables the walk function. Riders can connect to the Bosch system using the Flow App, which allows for updates to be applied, power modes to be tuned, and security and navigation features to be accessed.
The Pivot Shuttle LT’s Bosch system comes with a 4A charger, taking the 800Wh battery from empty to full in around 6 hours. A Bosch Fast Charger is set to be available later in 2026, which will provide 50% charge in just one hour.
PIVOT SHUTTLE LT GEOMETRY
The Pivot Shuttle LT features highly adjustable geometry, which gives a spread from fairly conservative to quite aggressive and stable. The four sizes available cover a reasonable reach range, but the gaps between each frame size are tight enough that we expect most riders will find a comfortable fit. While the chainstay lengths are consistent across the size range, the 8mm of length adjustment with the Swinger dropout should keep most happy.
The 483mm reach on our size large in Steep provided a comfortable fit for our 5’10” to 6’2” (178cm to 189cm) crew. We were split on the seat tube angle and rear end length preference, but all agreed that there was enough delta between the geometry adjustment settings to give a good setup for each of us.
PIVOT SHUTTLE LT BUILD OPTIONS
Pivot offers the Shuttle LT in a range of builds from the $8,999 Ride Eagle 70/90 to the top-spec Team XX with Fox Live Valve NEO at $16,699. We tested the Pro build, retailing for $12,599, and with a spec list that gave very little to complain about.

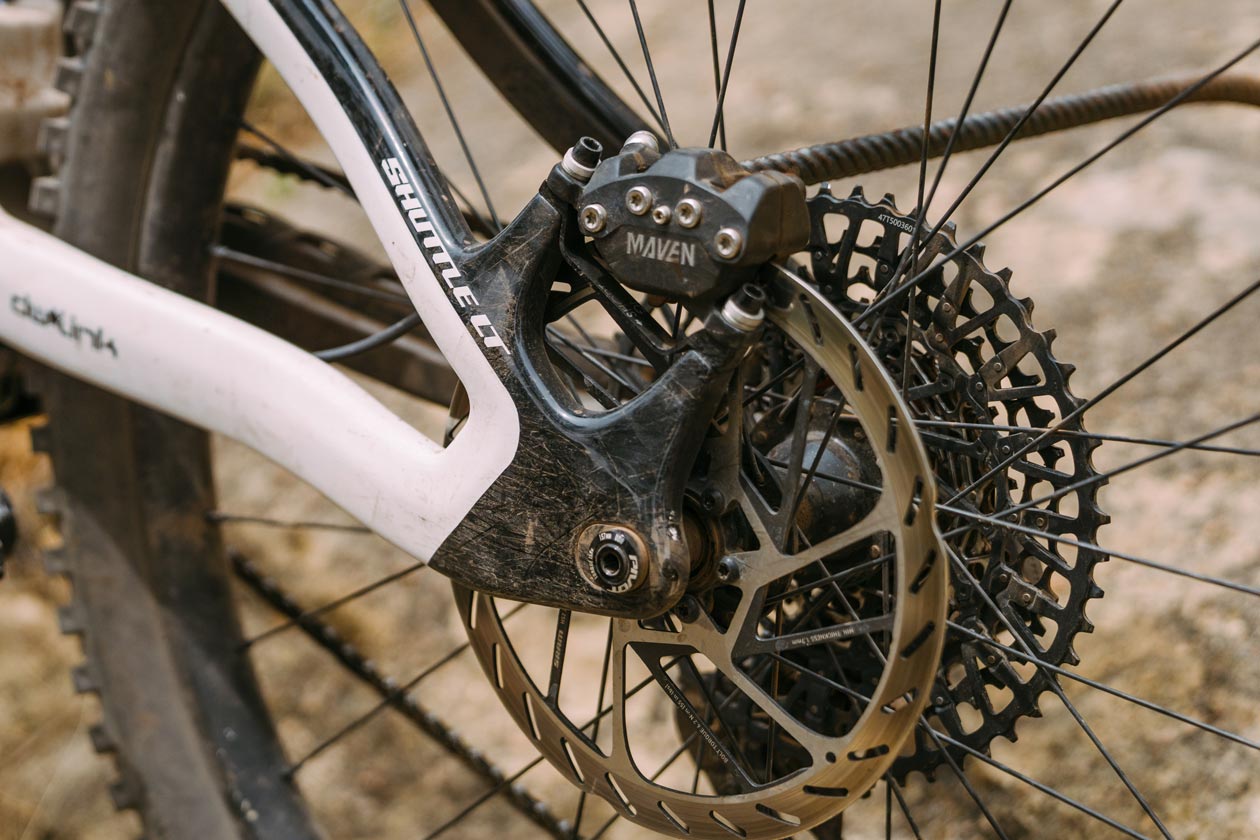

The Fox Podium Factory and Float X Factory suspension combo offered excellent adjustability and consistency of performance. SRAM’s X0 T-Type drivetrain was flawless and handled the abusive shifting under load without flinching. SRAM Maven Silver brakes with 200mm rotors were solid performers, once the usual setup bleeding and massaging rigmarole was performed.
The Pivot carbon bar and alloy stem finishing kit were comfortable, and the OneUp V3 dropper post in 210mm drop was a welcome sight.
Rounding out the specs, the Crankbrothers Synthesis DH wheels offered a burly platform that was wrapped in the Continental Kryptotal Enduro tires. These were replaced with our control tires, provided by series sponsor Schwalbe: the Tacky Chan Gravity Pro and Magic Mary Gravity Pro tire combination offered dependable performance and a consistent platform across eBikes.
The Pivot Shuttle LT Pro in size large weighed 53.8 lbs (24.4 kg) with our Schwalbe control tires.
BOSCH CXR DRIVE UNIT PERFORMANCE
- Pure Power: The CX-R has the tendency to feel a little bit punchier, and quicker to react than the normal CX drive unit from the factory. As with all the latest full power drive units, tuning is very important to ensure the power doesn’t overwhelm your climbing experience. Bosch’s CX-R is peppy, offers a very fast reaction time and has impressive power. With 600% assist support, 750Wh of power and 120Nm of torque, it’s not the most powerful when compared to Avinox, but as with all the Bosch bikes, it never prevented us from making a climb. It’s got more than enough get up and go.
- Control: Bosch’s Flow app gives riders a lot of control over the amount and delivery of power, as well as the feedback and responsiveness. Bosch do a good job of providing a capable motor, however we did notice that on the most extreme of technical climbs in the Turbo or Race power mode, traction and power aren’t quite on par with Avinox. Similarly, the reactiveness of the system to tailor power doesn’t seem quite as quick. Bosch have updated sensors in the Gen 5 system, but the wheel speed magnet is still mounted at the valve stem and seems to be a touch slower to react to the terrain.
- Perceived Efficiency: Our crew believed that the Bosch system was one of, if not the most efficient when power was set to our default efficiency test mode. We set the units to 750W of power and 100 Nm for this test, and the Bosch was a top contender. However, the numbers were close enough that human effort or a bike’s suspension platform – and even line choice – could have made the difference. Either way, it’s a solid performing system if you tune it right.
- Noise Up and down: Acoustics vary based on each frame because of material, tube shapes, and other efforts to control noise. That said, the Bosch is quiet on the way down, however it does have a more electronic humming pitch to it than the Avinox and Specialized 3.1 drive unit. It’s not at nuisance level, but in certain power modes and loads, it is certainly noticeable.
- Ecosystem: The Bosch ecosystem is very good, and if Avinox didn’t exist it’d be great…The reality is that Avinox does exist though, and the lack of a touchscreen on Bosch’s premium Kiox 400C is a notable setback in the technological arms race. Does that affect how well the bike rides or would it prevent us from buying or recommending it? Not in any way, we’re big believers of buying the best MTB first, and focus on the e-tech second. It would still be nice to see Bosch catch up, however.
PIVOT SHUTTLE LT CLIMBING PERFORMANCE
Climbing the Shuttle LT was a bit of a Jekyll and Hyde affair. The Shuttle LT can me set up to feel wildly different, as you’d expect from the plethora of adjustments Pivot gives the bike. We’d recommend taking the time to experiment and find the settings that work best for your zone, because it can greatly affect your experience.
Undeniable strengths of the Pivot Shuttle LT in the climbing department are comfort, traction and confidence. On bigger days, the Shuttle LT’s supple suspension and the comfort in the saddle provided our chaffed and fatigued rear ends much relief. That rear suspension also meant traction and control were assets to tackling the loose-over-hard conditions we often found ourselves in. When the Shuttle LT is in the right configuration, its a composed, calm and comfortable climber that riders can easily spend a day on.
When the the geo configurations aren’t optimized however, we found that the Shuttle LT was regularly clipping pedals and cranks. In the mullet configuration, the Shuttle LT has the lowest static BB in the test at 335mm. On smoother climbs, fire roads, purpose built up routes its no issue at all, however, at these shootouts, we love (aka Drew loves) to push the limits of man and machine by pointing these machines up heinous rock gardens for our Hill Climb Challenges. If you live for riding in chunky terrain with rain ruts, tall roots or larger rocks abound, we’d suggest running the bike in the Short and High position, or even better, run a 29-inch wheel in the back to raise the rear end a bit more.
Outside of the ground strikes in certain types of terrain in conjunction with certain geo configurations, the Pivot Shuttle LT is an awesome climbing eMTB. The flipside is the versatility of those geometry adjustments and how they can really help give you a bike that works for your terrain.
PIVOT SHUTTLE LT DESCENDING PERFORMANCE
With numerous trophies and awards attached to its name, the Pivot Shuttle LT has a legacy here at The Loam Wolf. For the last few years the Shuttle LT was Drew’s go-to eMTB, and the rest of the crew agreed that its versatility and utility made it an easy bike to recommend. Even with most of the group loving the bike, Cole was the lone standout who agreed it was good, but just never quite fell in love with it. Fast forward to the 2026 eMTB Shootout with the new generation Pivot Shuttle LT, and Cole has found his new favorite do-everything eMTB. While the bike made a major move to the top of Cole’s list of bikes (and many other testers), the Podium fork likely affected the bike’s overall feel for it’s biggest proselytizer, Drew.
In short, Drew struggled finding a fork setting that kept him riding high enough to remain confident over the bike, and give him the Do-Anything confidence he’d grown accustomed to on his earlier Shuttle LTs. The bike remains high on his overall list, being extremely capable and versatile, however we went as far as installing a Zeb on the bike to see if that would help instill a bit more front end confidence, which it did for him, but wasn’t ideal for the rest of the crew.
Moving beyond the more intimate details of individual rider’s personal feelings, the group as a whole loved the Shuttle LT. To paraphrase Sean’s sentiment, “It’s comfortable in chaos!” Pivot seem to have extended the legs of the LT by making it a bit more composed and capable in the gnarliest of terrain, while still making it a versatile enough bike for general riding. With the Fox Podium fork, it does ride a bit more planted and plush, which some riders will love. Cole said “It feels like I’ve got Velcro under the front tire with all this grip!” Drew felt it slid back a touch in the playfulness department, although we did primarily ride the bike in the Long chainstay position which also will affect the liveliness of the bike. It was a choice we made as most of our test trails were high speed and full of chunky, nasty rock pounding goodness.
As with everything, the Long chainstay position meant there was an upside elsewhere. The longer wheelbase gives the new Shuttle LT a more balanced, ‘in the bike’ feel with added stability. Our riders all liked the handling, center of gravity and way we could push the Shuttle LT around. The bike cornered well and transitioned between quick turns very nicely. It rode a bit lighter, and faster when we needed to change directions, or angles quickly.
Another standout area of the Shuttle LT was the rear suspension platform. Just like it smoothed out the trail on the way up, it also helped reduce some of the chatter and feedback on our favorite test tracks at Glorieta. The Float X shock is impressive in how lively and supple it feels, but it can still handle some serious abuse when required.
HOW DID IT COMPARE?
Comparing the Shuttle LT to the prior generation, it has a notably different ride, made apparent by the change from Cole’s middle-of-the-road rating, to picking the 2026 Shuttle LT as his favorite. It doesn’t quite have the upright posture and bump-eating smoothness of the Forbidden, though it is smoother and easier to cruise on than the Mondraker Zendit if you’re not looking to race-pace your daily rides. It’s also more maneuverable and lively than the longer “race” inspired bikes, which makes it a bit more versatile for more terrain and riders. The geometry customization is unmatched, and there’s likely to be a setting that will make this bike feel like it’s made just for you.
The Wolf’s Last Word
Pivot have taken a crowd pleasing award-winning eMTB and evolved it to the next level. That could mean it’s now the right bike for you, or you might be better to buy the previous generation or a different machine. If you value a truly premium product with tight tolerances and category-leading frame alignment, and all the adjustability in the world, the Shuttle LT checks a lot of boxes. Some of our riders would have preferred to ride a non-Podium equipped model with a 29er out back, while others loved the Podium’s plushness and the way the 27.5″ rear wheel dipped over in the corners. What’s great about the Shuttle LT, is that you can do either (and more) to make a bike that works for you. Pivot have retained a versatile, capable eMTB with smooth and supple suspension, which makes it capable of all day epics or bombing your favorite trails.
WHO SHOULD BUY THE PIVOT SHUTTLE LT?
Riders who value versatility in tuning frame and suspension feel and want an eBike they can take and ride anywhere. It’s also a great option for those who want a Bosch CX-R equipped bike with an easily removable battery, a top-quality frame with nice finish and features, and a machine that feels equally at home in the chaos or exploring more mild trails, and everything in between.
Price: $12,599
Weight: 53.8 lbs (As Tested)
Website: Pivotcycles.com
