THE TOP LEVEL
The new Pivot Shuttle LT sports 162- or 165mm of DW-Link rear suspension and a 170mm fork, ensuring high levels of big-hit performance, but with support under power to retain agility and efficiency. The Bosch Performance Line CX or CX Race Gen 5 drive units offer excellent power and control to take this long-travel eMTB back up the trail, with 800Wh battery capacity to provide solid range for long days in the saddle.
IF IT AIN’T BROKE…
Pivot continues to use the DW-Link suspension system to control the 162/165mm rear end of the Shuttle LT, and for good reason. Dave Weagle’s suspension system delivers reasonable sensitivity yet supports hard-charging descending efforts. And on the way back up the hill, it gives enough platform to keep the pedals in check and avoid wallowing under power, while allowing the rider to remain seated through the rough and help the rear tire latch onto the terrain below.
SHUTTLE LT DRIVE UNIT AND BATTERY SIZE

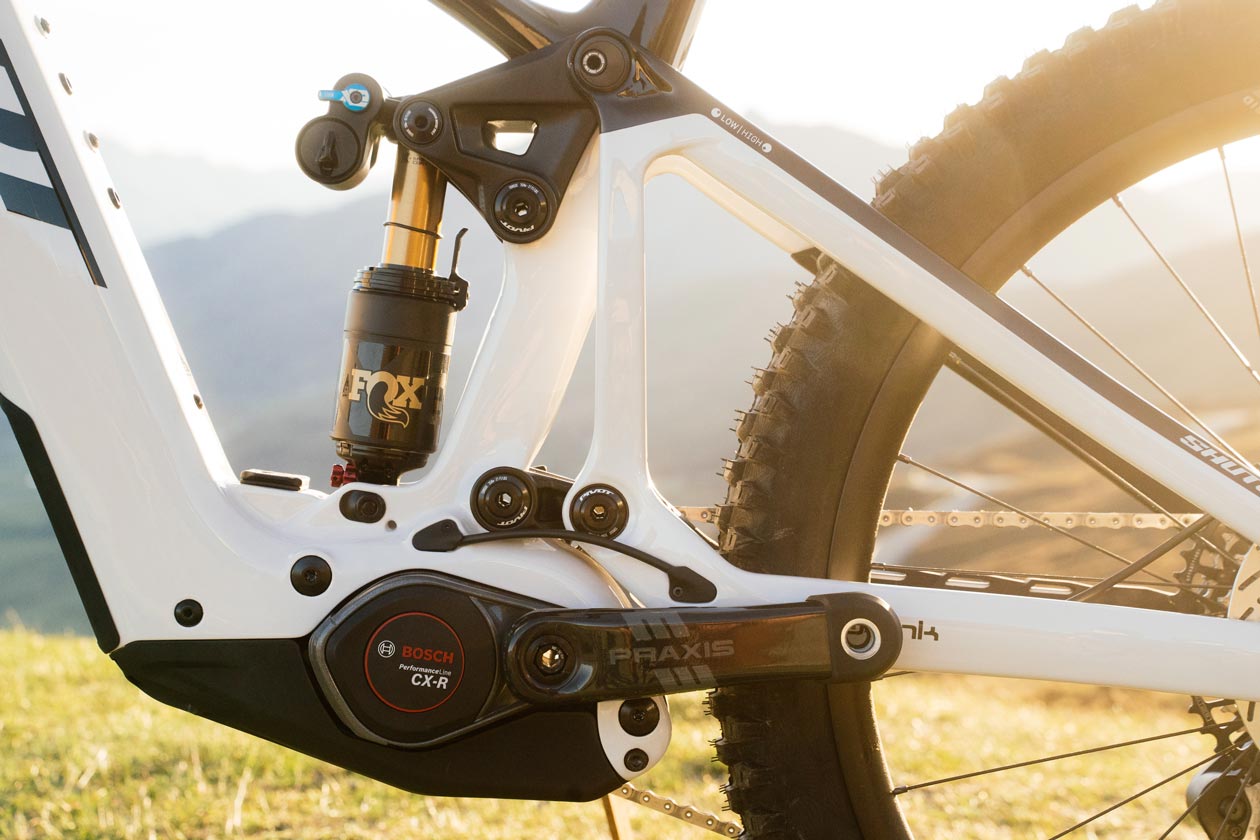

Bosch Performance Line CX or CX Race
Depending on the build kit selected, the Pivot Shuttle LT is equipped with the latest Bosch Performance Line CX or CX Race drive units. These deliver 750 Watts of peak power, with up to 100Nm of torque.
Inside the downtube of the 2026 Pivot Shuttle LT is a removable 800Wh Bosch PowerTube battery, fixed with the Floating Battery system. The frame is also compatible with the lighter 600Wh battery for riders looking for increased agility at the expense of maximum range. Speaking of range, the frame will happily accept a PowerMore Range Extender, which can be purchased for an extra $550.
Pivot updated the charge port design, making a sleek and weather-sealed design with improved durability. When using a Range Extender, the new port improves cleanliness, and is located close to reduce the length of range extender cable.

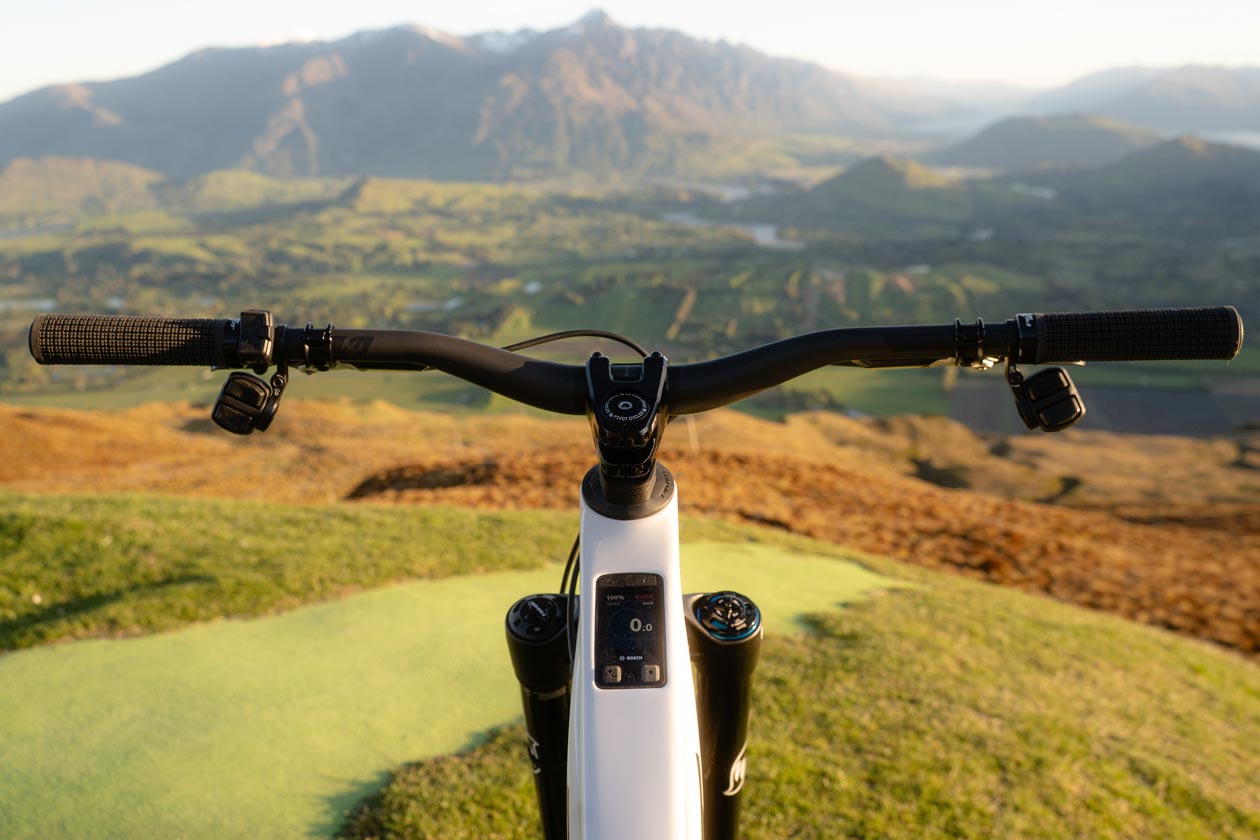

On the top tube, the Team and Pro builds receive the Bosch Kiox 400C color display as standard, while the Ride level builds receive the LED System Controller. On the handlebar, the Bosch Wireless Mini Remote allows for the control of the different ride modes and the walk function.
Using the Pivot X Bosch FLOW app, riders can connect to their Pivot Shuttle LT and adjust the ride modes to their preferences. It allows for the tracking of maintenance schedules, anti-theft features, and for updates to be applied over-the-air.
THE MOST ADJUSTABLE EMTB?
Pivot worked to add adjustability to the elements of the Shuttle LT that their customers and athletes desired, with unique and innovative features thrown into the mix to take the performance customization to a new level.

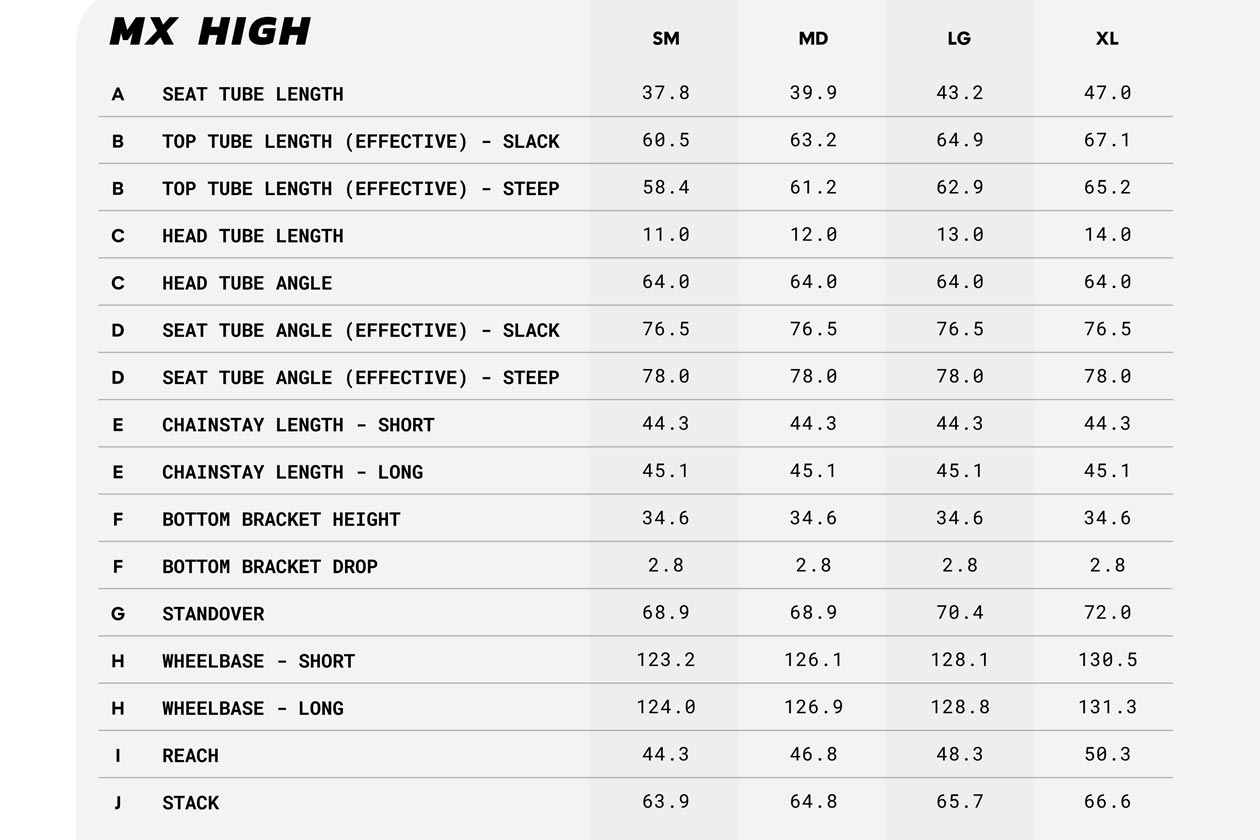

The highlight of the adjustability comes in the form of the new Slacky McSteepTube adjustment. Riders can swap the orientation of this system to tailor the effective seat tube angle between 76.5° and 78°, optimizing for the terrain on the menu of the day. The slacker seat tube angle setting is considered preferable for more technical, lower-grade climbs, like those found in Pivot’s home-trails of South Mountain. According to the presentation given by Chris Cocalis, the steeper seat tube angle favors Pinkbike testers (it was a joke, sort of) and those with sustained steeper gradient climbs and riders with purpose built up-trails or service roads.

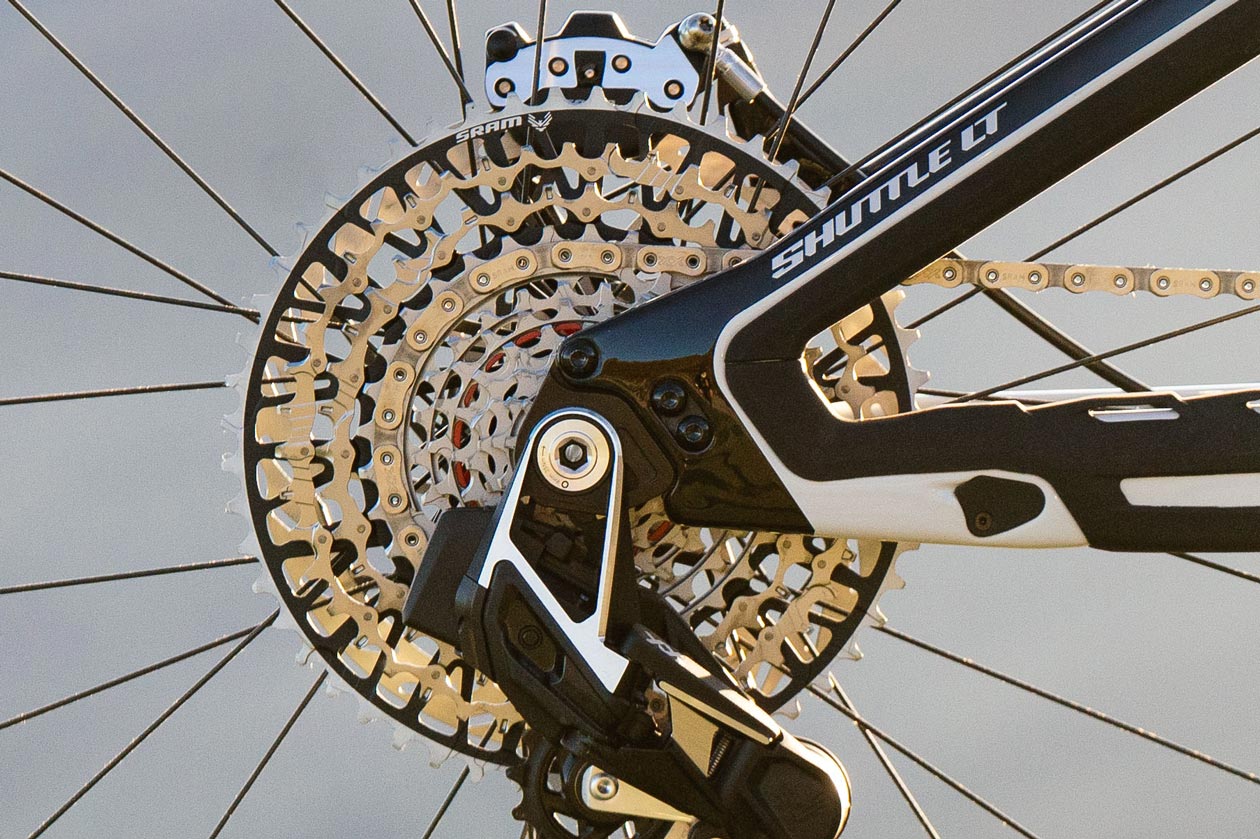

On the rear end, the Swinger dropout system offers 8mm of chainstay length adjustment. This affords the rider the choice between a more agile, playful rear end setting, or the increased stability of the longer setting with increased weight on the front wheel.
On the frame, there are two flip chips to independently adjust the geometry and suspension progression. The geometry flip chip makes a notable difference to the bottom bracket height, maintaining the geometry if the rider opts to fit a 29” rear wheel. The suspension progression flip chip at the lower shock mount offers a more linear (32.7%) or more progressive (36%) setting, to tailor the handling to the rider preferences.
PIVOT PEDIGREE THAT REMAINS
- Ride-Tuning Approach – Pivot gives the Shuttle LT its proprietary ride-tuned approach, which aims to maintain the same ride feel across the size range. Each frame size receives different tube profiles and carbon layups to ensure consistent handling characteristics.
- Floating Battery – To reduce the effects of the sturdy aluminum battery housing on the downtube stiffness, the battery is mounted with a floating system. The floating system uses nylon composite mounts to separate the battery from the downtube structure. This allows for the carbon fiber frame to flex predictably, ensuring comfort and traction.
- Class-leading Frame Alignment – Pivot is very proud about their tight tolerances. They go through costly and time-intensive steps to ensure each frame’s tolerance is spot-on. What do they mean by spot-on? The width of a human hair. That’s the difference between a “GO” or “NO GO” frame on their custom alignment gauge. It’s part of what makes their bikes ride so well.
BUILDS FROM GREAT TO GREATER
The Pivot Shuttle LT build spec lineup ranges from $8,999 to $14,999 as standard, with Fox Live Valve Neo coil shock upgrade available for $1,450 on the Team builds. These all feature the 800Wh PowerTube battery, with spec choices made to ensure excellent descending performance.

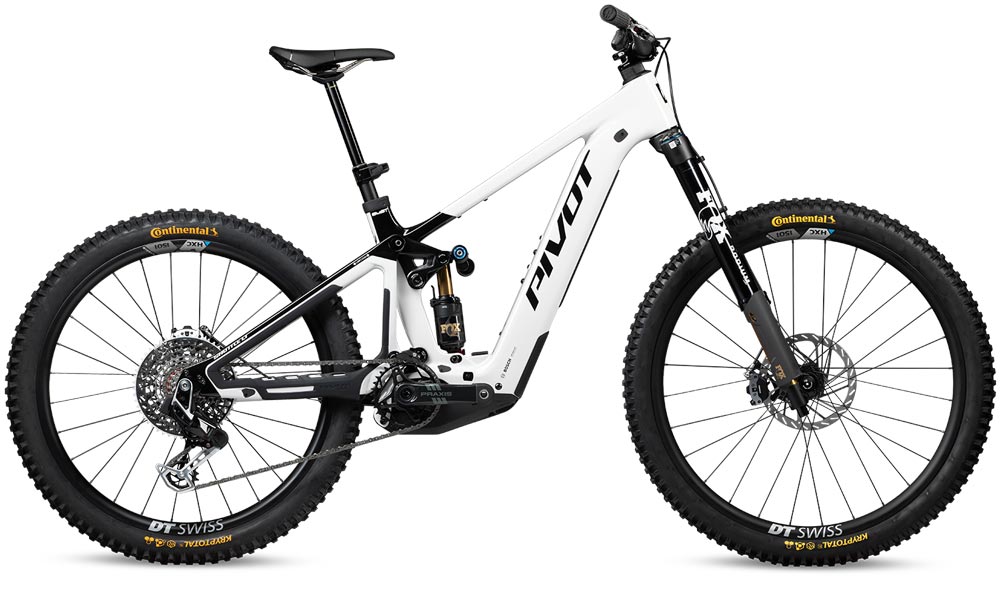

TEAM XX EAGLE TRANSMISSION

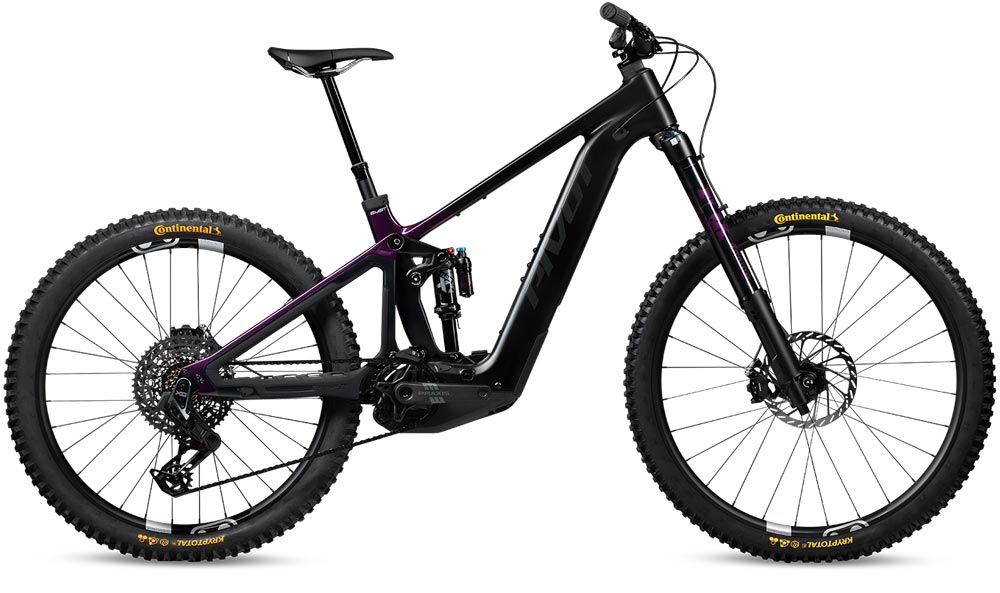

PRO X0 EAGLE TRANSMISSION

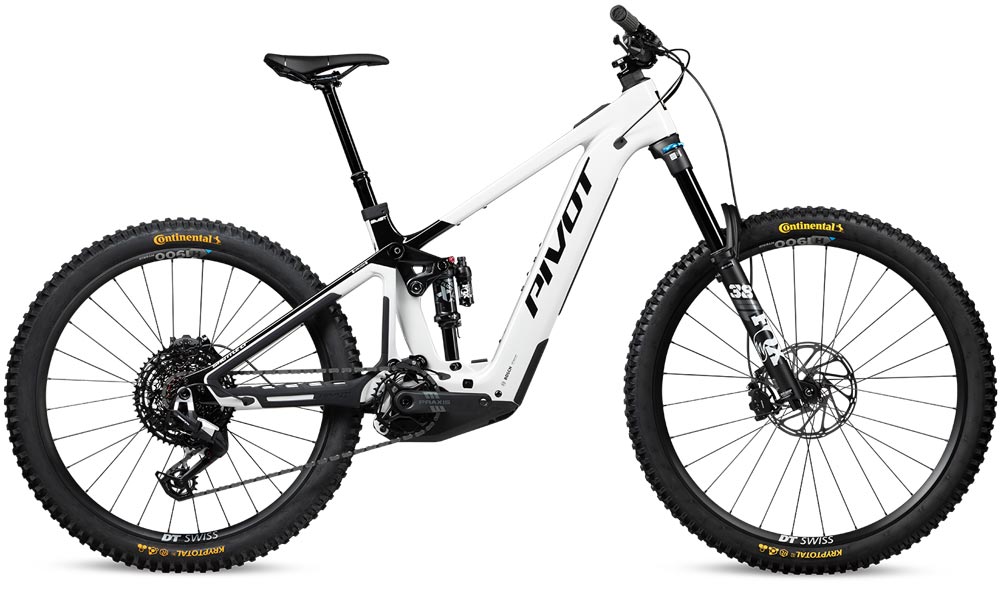

RIDE 70/90 EAGLE TRANSMISSION
THE WOLF’S FIRST IMPRESSION
For the production of this Dissected feature, we made the trip down to the Pivot HQ in Phoenix, Arizona. During this trip, we had the opportunity to learn about the bike from the Pivot crew and put it to the test for three days of riding and 90 miles of desert singletrack with Pivot employees and members of the Pivot Factory Racing team. While this won’t constitute a full review, the time spent working closely with figures such as Alex from Fox Factory ensured that the bike was dialed in quickly, and we had a little time to experiment with the seat tube angle and chainstay adjustments.
Immediately, it was apparent that the new Pivot Shuttle LT exhibits the excellent fit and finish that is typical for a Pivot mountain bike. The frame held together tight, with no problems from around 14 people or so that were out bashing through the desert over three days. The cable rattle was nonexistent, thanks to Pivot’s new cable ports. I appreciated the charge port, which was really easy to access and in a nice location. And the downtube protector and burly bash guard stood up well to being bashed into rocks.
The Bosch drive unit was quiet, with no rattle. We’ve put in some big days on the CX Gen 5 system, and you can obtain great range if you focus on optimizing your power mode selection. During the course of our riding, I found that most of the editors agreed that the extra power was borderline too much for the personal experience we like while riding technical terrain. Easy enough to adjust for sure thanks to the Bosch App, but, I wasn’t the only one wondering if this Newton Meter power race may start to polarize some true eMTB fans. From a reliability, serviceability, and dealer support angle, the Bosch system ranks highly, and is a safe choice for Pivot to spec on their flagship enduro eMTB. We did ask Chris Cocalis, Pivot CEO about why he opted to run the Bosch drive unit over the Avinox drive unit in this particular bike and he had a great response. Check that out on our Podcast channel where we sat down to talk with Chris about all things 2-wheels.
Growing up in the Southwest with a preference for a rocky, technical riding and being 5’11” (180cm), I haven’t suffered from the seat position issues like Robert or Cole – our testers who are 6’2 and have very long legs. I typically favor very technical climbing trails, and find that, while the steeper seat tube angle can be very useful in some scenarios, there is still a place for having a slightly more relaxed seat tube angle. The adjustment is therefore very welcome, to tailor the seating position to the trails on each ride. I switched the steeper position on day 2 and was pretty happy with it. I look forward to doing more back to back testing on my home trails.
A potential cause of concern that has not arisen yet, there has been no creaking, noise or problems of any kind from the seatpost. It seems like an effective solution, and we are excited to continue testing the Shuttle LT in some winter conditions, to see if the mud and water lead to any issues being encountered in the lead up to our 2026 full-power eMTB Shootout.
I made the switch to the long chainstay position using the Swinger dropout system, and I loved it for the descending on the faster, longer sustained trails of the second day of testing. However, on day one, we rode a lot of tighter and more technical trails, which left me wondering if the longer rear end would cause some issues on the slow-speed steps and ledges. Once again, I welcome more time aboard this bike on my home trails.
I dialed in the suspension setup on the Shuttle LT quickly, with the help from the Pivot and Fox Factory team. With a comfortable setting, it was clear that this satisfied the next evolution of the Shuttle LT. They didn’t take away anything that I loved about the previous generation eBike, which was a Shootout winner for us for a couple of years. But they have tightened the package up, and incorporated elements from their excellent Firebird enduro bike. Despite the weight not getting any lighter, the new bike rides a bit lighter and feels more like the Firebird than the old Shuttle LT in the best ways but still retains the planted suppleness of the Shuttle LT that I’ve always loved.
Moving into the rest of the bike, its suspension felt really nice on the climbs and solid on the descents, as we have come to expect from the DW-Link system on Pivot bikes. I liked the geometry, too, which remains mostly unchanged from the Shuttle LT of old, aside from a slightly longer chainstay and steeper seat tube angle option.
With just three days on foreign trails, the ride impressions for this Dissected feature by no means constitute a review, but we certainly have had a lot of fun, and are excited to continue testing the latest generation of Pivot’s heavy-hitting electric mountain bike.
To learn more about the Pivot Shuttle LT and see the rest of the details, visit pivotcycles.com
