THE NEW ZENDIT eMTB

March 26, 2026

Announcing the all-new ZENDIT, the flagship Mondraker e-MTB that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful Avinox drive system.

Designed for aggressive riding on the nastiest climbs and descents, ZENDIT is the result of over 11 years of e-MTB development, combined with the no-holds-barred approach to suspension performance from the Mondraker Factory Racing development team.

PRODUCT OVERVIEW

ZENDIT is constructed from the ground up around the Avinox drive system. With 165mm of rear wheel travel, a mixed wheel configuration as standard and the next evolution of the ZERO suspension platform, ZENDIT is by far the most capable Mondraker bike to date.

KEY FEATURES

• The most refined and advanced frame design yet
• Stealth Air Carbon construction
• ZERO suspension platform
• 165mm travel rear, 170mm front
• Evolved FORWARD GEOMETRY
• Adjustable geometry
• The most integrated motor and battery design to date
• MX wheels as standard, full 29” compatible
• Multiple build options available

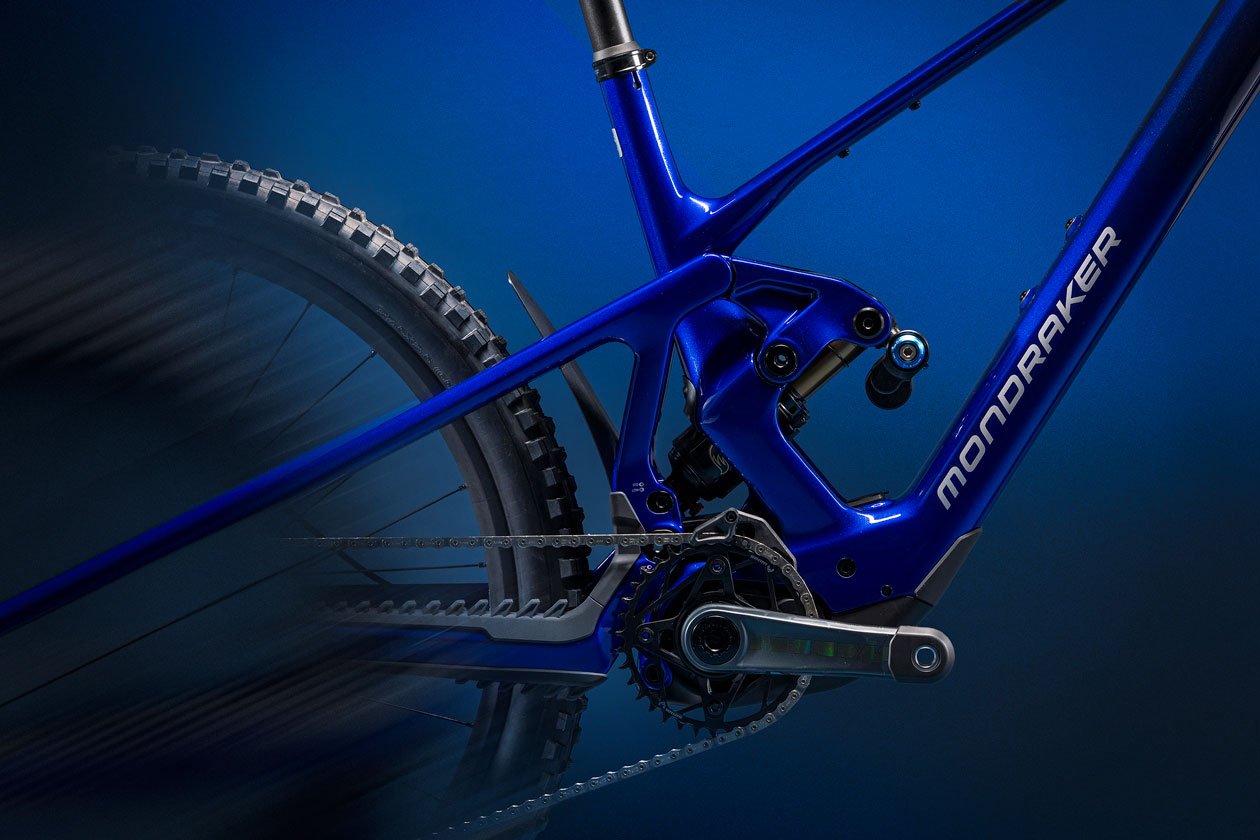

STEALTH AIR CARBON | THE NEXT EVOLUTION

Rather than adapting an existing platform, the ZENDIT frame was designed to house the most advanced motor system on the market.

This frame is highly advanced in both design and manufacture. For the first time 6-Axis CNC machines are used for frame drilling and finishing in place of hand finished frames.

NEW SEALED BEARINGS

ZENDIT takes advantage of everything learnt from the MFR DH development team and uses the same pivot system as the new and proven Summum DH frame.

With single-size Enduro Max bearings throughout, maintenance becomes easier and two additional rubber seals help the bearings last longer.

KEY FRAME FEATURES

• One-piece carbon rocker
• New twin-sealed bearing system as seen on Summum

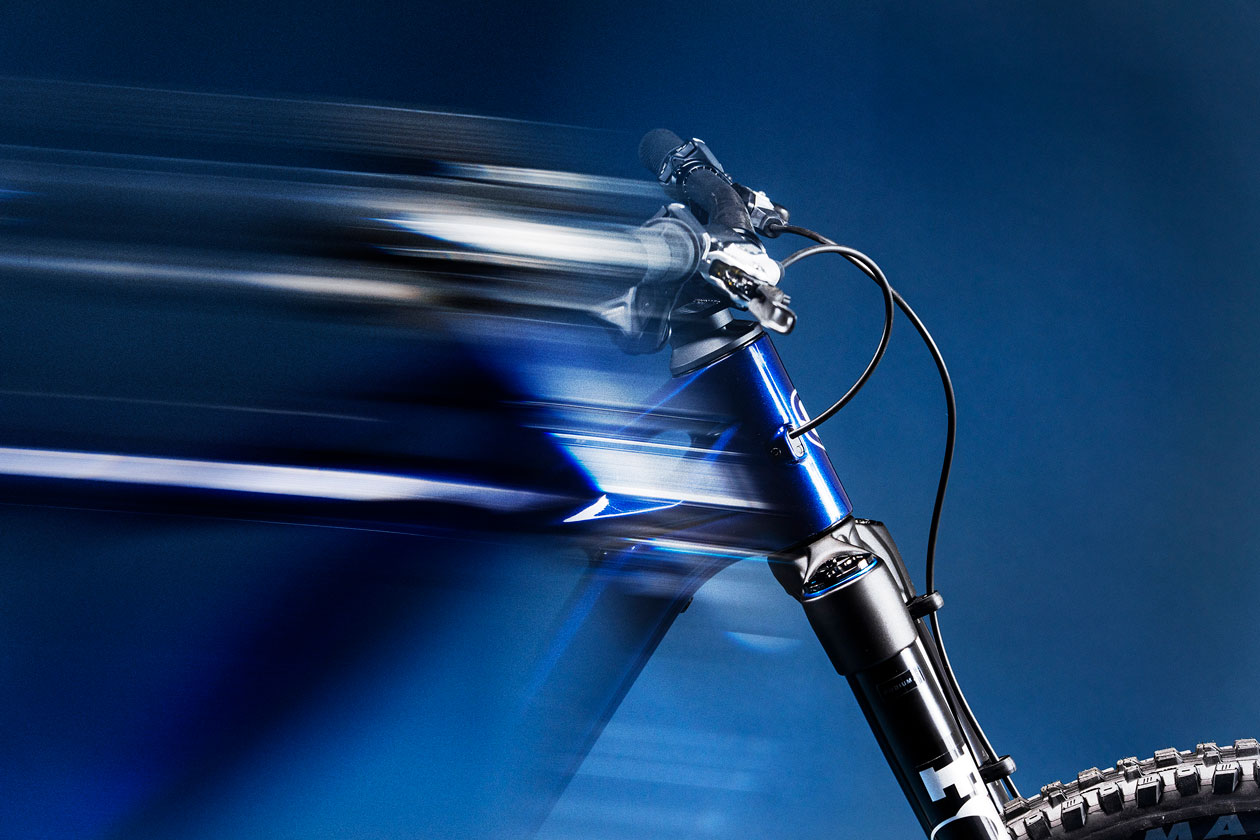

• Headtube cable entry
• Moulded internal cable channels (HHG)
• Seamlessly integrated display unit
• Dedicated rubber and plastic frame protectors
• Integrated rear shock mudguard
• New rubber chainstay silencer

SUSPENSION KINEMATICS

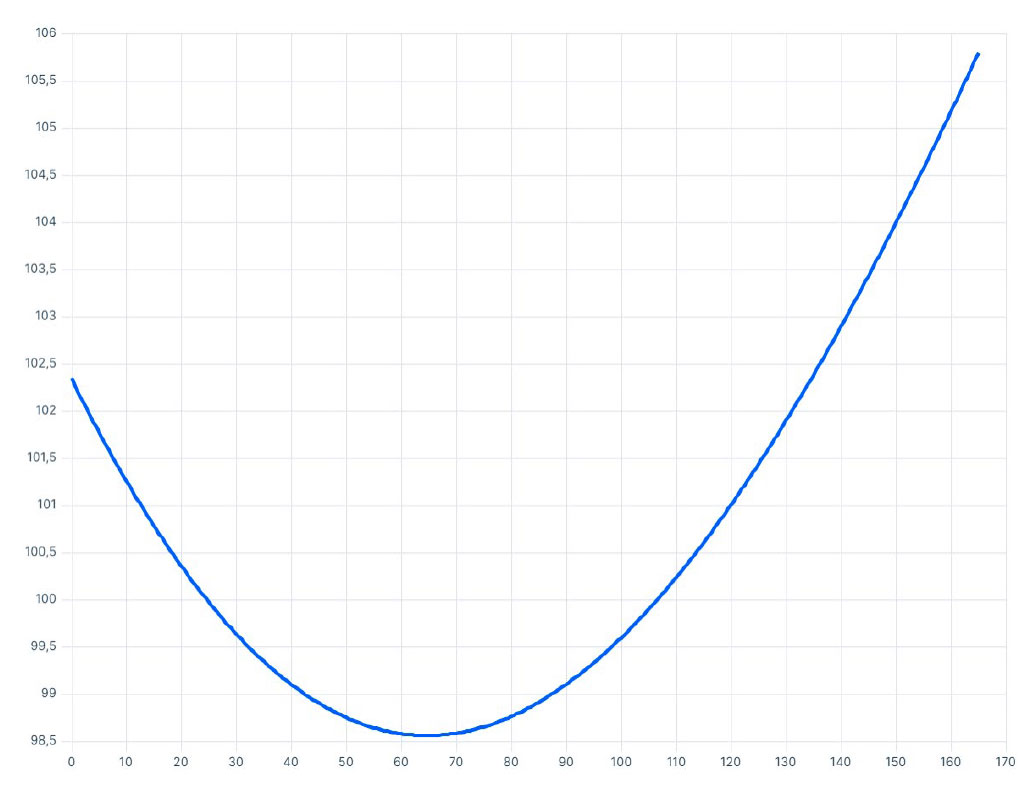

The ZERO suspension kinematics are completely revised to reflect what the Avinox motor can output. There is more support and a more active suspension action to make sure the increased power gets to the trail.

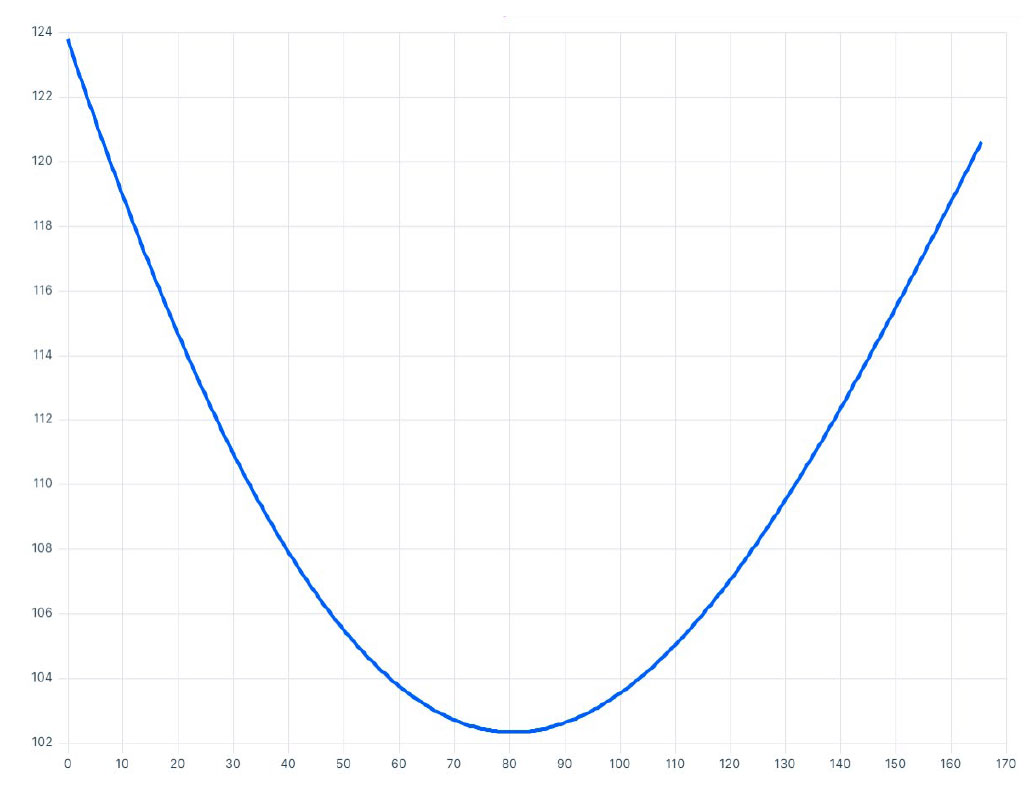

A 36-tooth chainring further enhances drivetrain durability, whilst optimised Anti-Squat figures maintain a balanced, efficient ride with every pedal stroke.

Mondraker and Fox have worked closely to offer the best performance for ZENDIT in terms of rear suspension. The latest Fox Float X shocks on the RR and RR S models as well as the latest Fox Float X2 shock on the XR model have a specific tunning adapted to the kinematics of the bike, maximizing its performance and ride feel.

PROPORTION MATTERS

As with other bikes over 150mm of rear wheel travel, ZENDIT comes stock with a mixed wheel configuration – it’s the best overall performance for the aggressive riding. But it can easily rock 29’’ wheels for even more climbing capability!

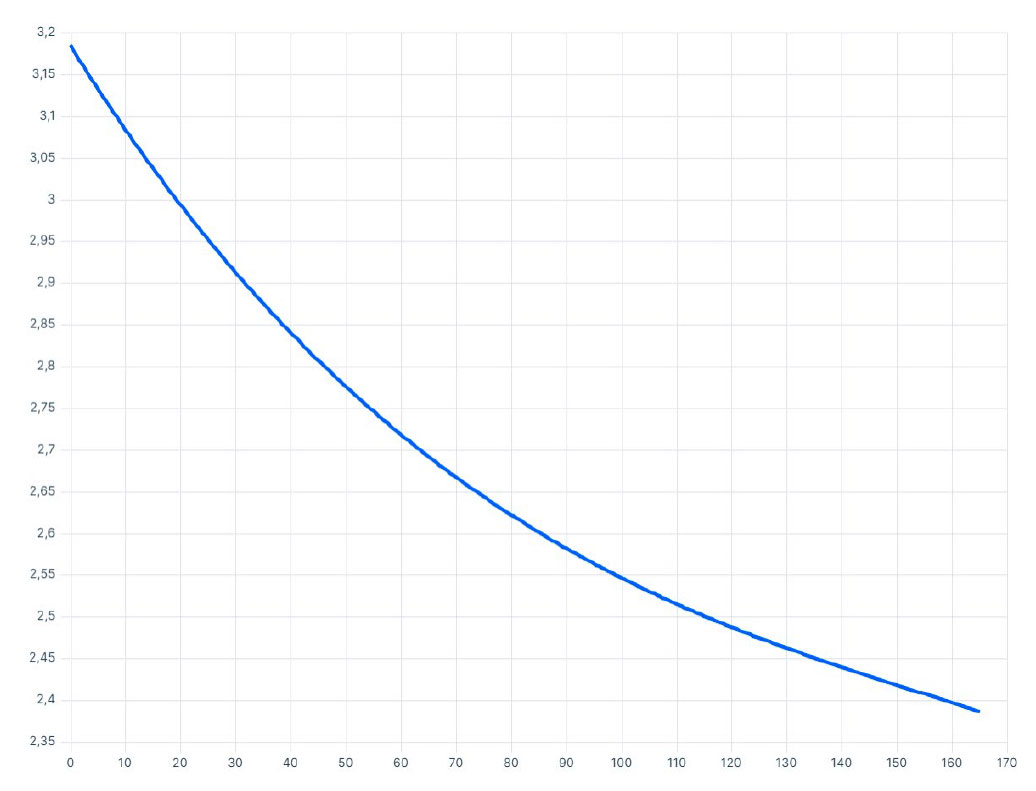

ZENDIT features proportional chainstay lengths depending on the sizes. S; M and M/L sizes offer the same 450mm chainstay length, whereas the L and XL models are 5mm longer at 455mm. By slightly adjusting pivot placement in all sizes, the same leverage ratio is achieved throughout. So, no matter what size you need, you get the same ride qualities.

To use 29’’ wheels, there is a lower flip-chip that increases chainstay length by 7mm, but crucially does not have any effect on the suspension kinematics. Bottom Bracket height and key angles remain the same too.

How cool is that?

The Crafty is Mondraker’s longest standing and most versatile e-MTB – with refined geometry; category defining suspension performance and a removable 800Wh battery, it just hits the mark.

But our design team had a craving to make something more – something sleeker in design yet uncompromisingly aggressive in suspension travel and performance.

ZENDIT is the result.

WANT CHIPS WITH THAT?

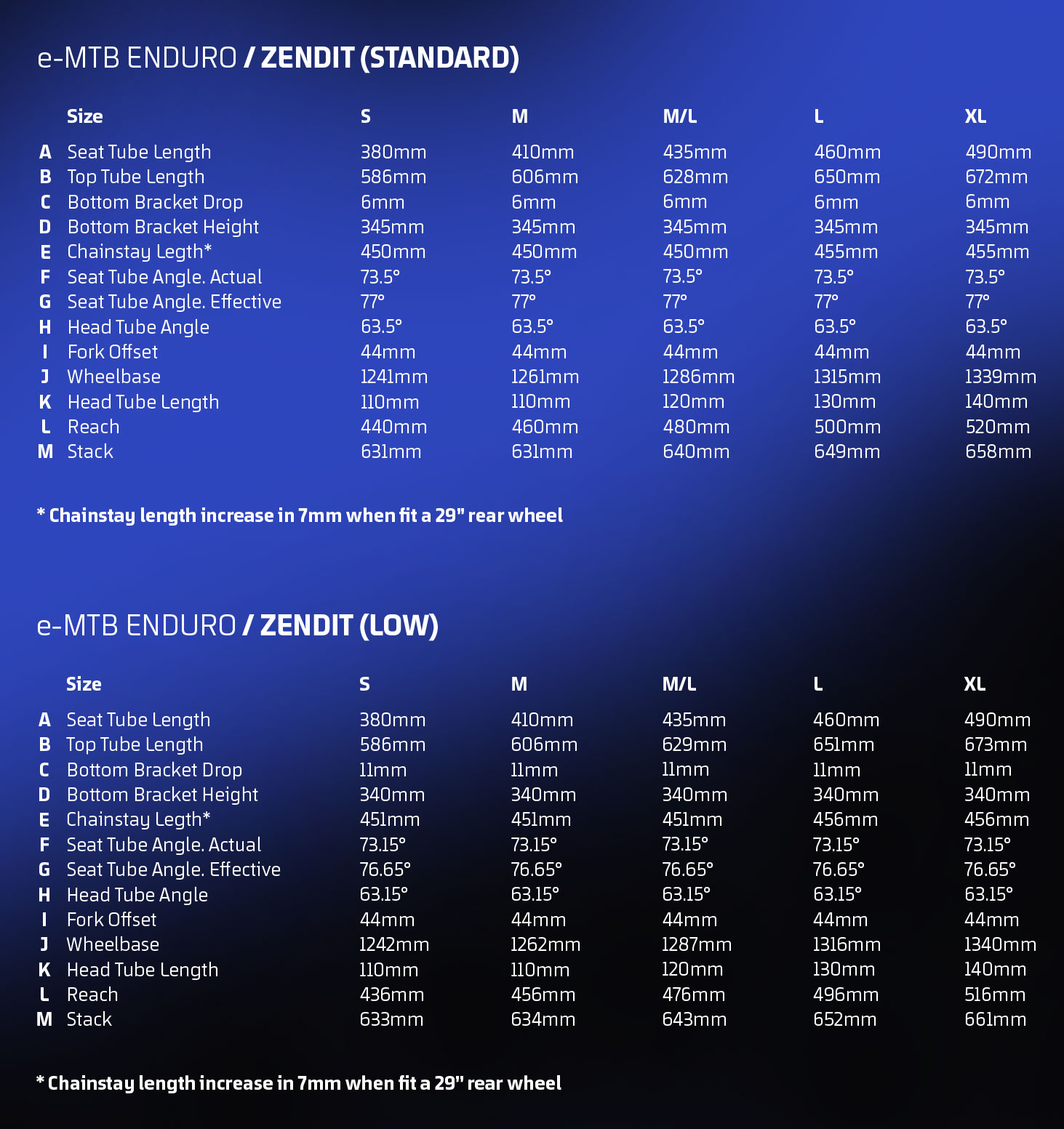

As well as the chainstay adjustment chip to incorporate a rear 29” wheel, there is also a 2 position flip-chip to fine tune the geometry.

STANDARD

• 63.5° head angle
• 345mm bottom bracket
• 77° seat angle

LOW

• 63.15° head angle
• 340mm bottom bracket
• 76.65° seat angle
• 4mm reach reduction

The flip chip adjusts the head angle by 0.35° instead of 0.5°, in order to reduce the Bottom Bracket height by 5mm instead of 8mm which would be too much of an overall geometry change.

AVAILABLE BUILDS

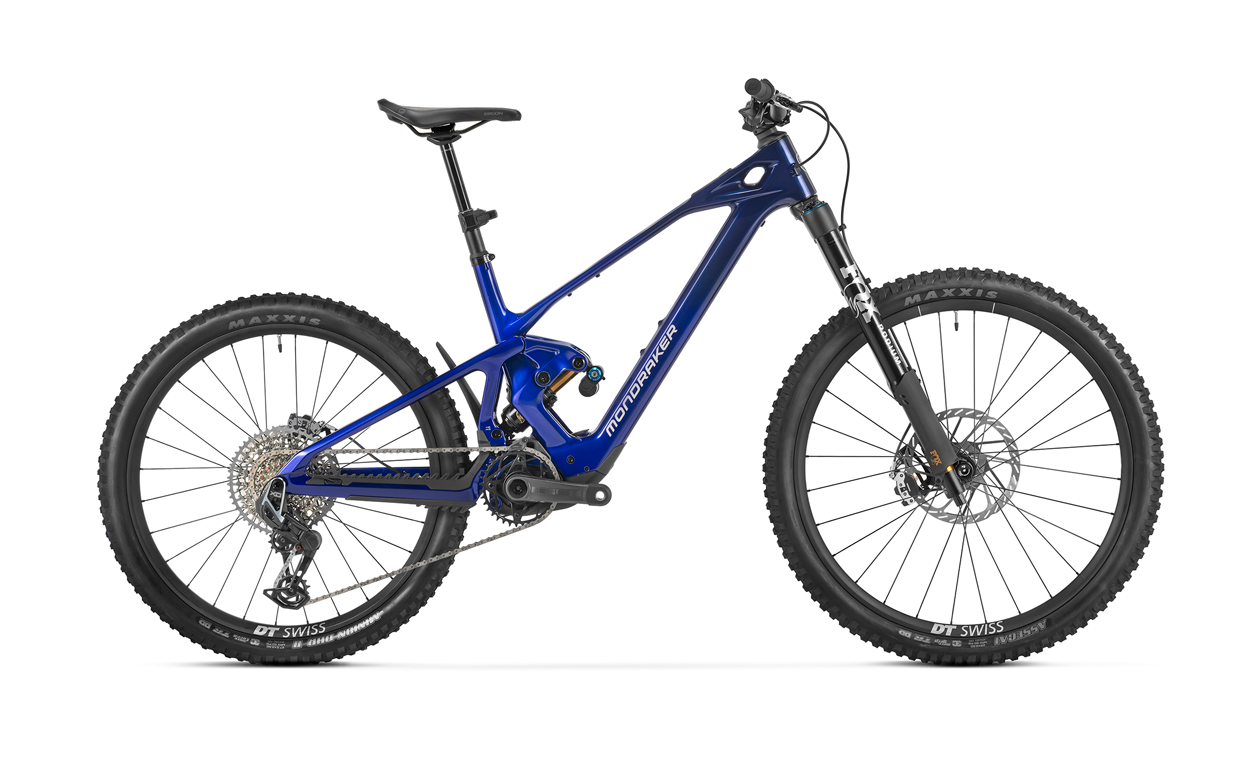

ZENDIT XR

PRICE: $15,499

FRAME: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry
SIZES: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

REAR SHOCK: Fox Float X2 Factory Kashima 205x65mm
SHOCK SETTINGS: CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers
FORK: Fox Podium 29 Float GRIP X2 Factory Kashima | 170mm

HEADSET: Acros custom ZS56/ZS56
STEM: Onoff S9 30mm 0º, Full CNC
HANDLEBAR: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep
GRIPS: Onoff Desert Pro, CNC lock-on
SEATPOST: RockShox Reverb AXS
SADDLE: Ergon SM10 E-Mountain Black

FRONT BRAKE: Sram Maven Ultimate | 220mm
REAR BRAKE: Sram Maven Ultimate | 200mm
BRAKE LEVER: Sram Maven Ultimate

RIMS: DT Swiss Carbon
FRONT HUB: DT Swiss 350
REAR HUB: DT Swiss 350
FRONT TIRE: Maxxis Assegai 29×2.5WT
REAR TIRE: Maxxis Minion DHR II 27.5×2.5 WT

CRANKSET: e*thirteen Helix Race Carbon e*spec. | 155mm
RINGS: Sram Eagle 36T T-Type, 104BCD, steel, CL55
CHAIN: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
DERAILLEUR: Sram X0 Eagle AXS T-Type, 12s
SHIFTER: Sram Eagle AXS Pod Controller
CASSETTE: Sram XS 1275, 10-52T, T-Type, 12s

MOTOR: Avinox
BATTERY: Avinox 800Wh Battery
DISPLAY: Avinox DP100 Display

OTHERS: Sram AXS Extension Cord
WEIGHT: 23.1 Kg (claimed)

ZENDIT RR S

PRICE: $12,999

FRAME: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry
SIZES: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

REAR SHOCK: Fox Float X Factory Kashima Evol LV 205x65mm
SHOCK SETTINGS: CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers
FORK: Fox Podium 29 Float GRIP X2 Factory Kashima | 170mm

HEADSET: Acros custom ZS56/ZS56
STEM: Onoff S9 30mm 0º, Full CNC
HANDLEBAR: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep
GRIPS: Onoff Desert Pro, CNC lock-on
SEATPOST: Fox Transfer Factory Kashima
SADDLE: Ergon SM10 E-Mountain Black

FRONT BRAKE: Sram Maven Silver | 200mm
REAR BRAKE: Sram Maven Silver | 200mm
BRAKE LEVER: Sram Maven Silver

RIMS: DT Swiss Carbon
FRONT HUB: DT Swiss 350
REAR HUB: DT Swiss 350
FRONT TIRE: Maxxis Assegai 29×2.5WT
REAR TIRE: Maxxis Minion DHR II 27.5×2.5 WT

CRANKSET: e*thirteen Helix Race e*spec alloy | 155mm
RINGS: Sram Eagle 36T T-Type, 104BCD, steel, CL55
CHAIN: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
DERAILLEUR: Sram X0 Eagle AXS T-Type, 12s
SHIFTER: Sram Eagle AXS Pod Controller
CASSETTE: Sram XS 1275, 10-52T, T-Type, 12s

MOTOR: Avinox
BATTERY: Avinox 800Wh Battery
DISPLAY: Avinox DP100 Display

OTHERS: Sram AXS Extension Cord
WEIGHT: 22.9 Kg (claimed)

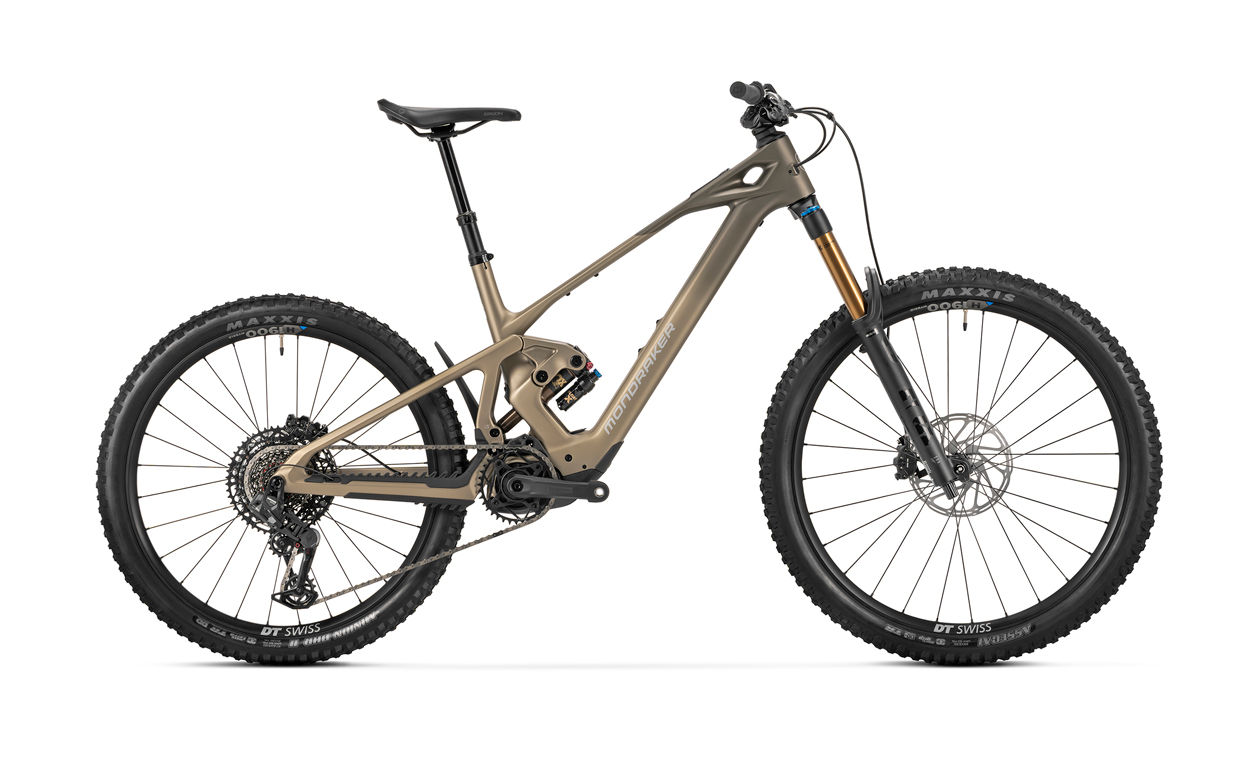

ZENDIT RR

PRICE: $10,699

FRAME: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry
SIZES: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

REAR SHOCK: Fox Float X Factory Kashima Evol LV 205x65mm
SHOCK SETTINGS: CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
FORK: Fox 38 29 Float GRIP X2 Factory Kashima | 170mm

HEADSET: Acros custom ZS56/ZS56
STEM: Onoff S6 30mm 0º, 6061 forged alloy + CNC
HANDLEBAR: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep
GRIPS: Onoff Desert Pro, CNC lock-on
SEATPOST: Onoff Pija dropper internal
SADDLE: Ergon SM10 E-Mountain Black

FRONT BRAKE: Sram Maven Base | 200mm
REAR BRAKE: Sram Maven Base | 200mm
BRAKE LEVER: Sram Maven Base

RIMS: DT Swiss H1900
FRONT HUB: DT Swiss 370
REAR HUB: DT Swiss 370
FRONT TIRE: Maxxis Assegai 29×2.5WT
REAR TIRE: Maxxis Minion DHR II 27.5×2.5 WT

CRANKSET: e*thirteen Helix Race e*spec alloy. | 155mm
RINGS: Sram Eagle 36T T-Type, 104BCD, steel, CL55
CHAIN: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
DERAILLEUR: Sram S1000 Eagle AXS, T-Type, 12s
SHIFTER: Sram Eagle AXS Pod Controller
CASSETTE: Sram XS 1270, 10-52T, T-Type, 12s

MOTOR: Avinox
BATTERY: Avinox 800Wh Battery
DISPLAY: Avinox DP100 Display

OTHERS: Sram AXS Extension Cord
WEIGHT: 22.8 (claimed)
