TEEWING

THE NEW FLUX ONE eMTB

ONE OF THE LONGEST-TRAVEL, MOST AGGRESSIVE AVINOX-POWERED BIKES OUT

April 9, 2026

Teewing—it’s not a name you’re going to forget!

We first entered the EMTB market as a launch partner of the Avinox M1 with our Turbo Force Trail bike, and now, we’re once again a launch partner with the all-new Avinox M2S, but this time we’re going bigger, faster and riding harder!

Introducing the Teewing Flux One!

The Flux One, is one of the longest-travel, most aggressive Avinox-powered bikes out there. Built to handle everything you can throw at it! Think of it as your personal uplift—skip uplift van queues, explore further, and lap your favourite trails while absolutely hauling.

With the Flux, we pushed for more versatility and performance, developing a new high-pivot suspension platform with a robust idler design offering up to 178mm of rear wheel travel, matched to a 180mm travel MY27 Fox 38 up front.

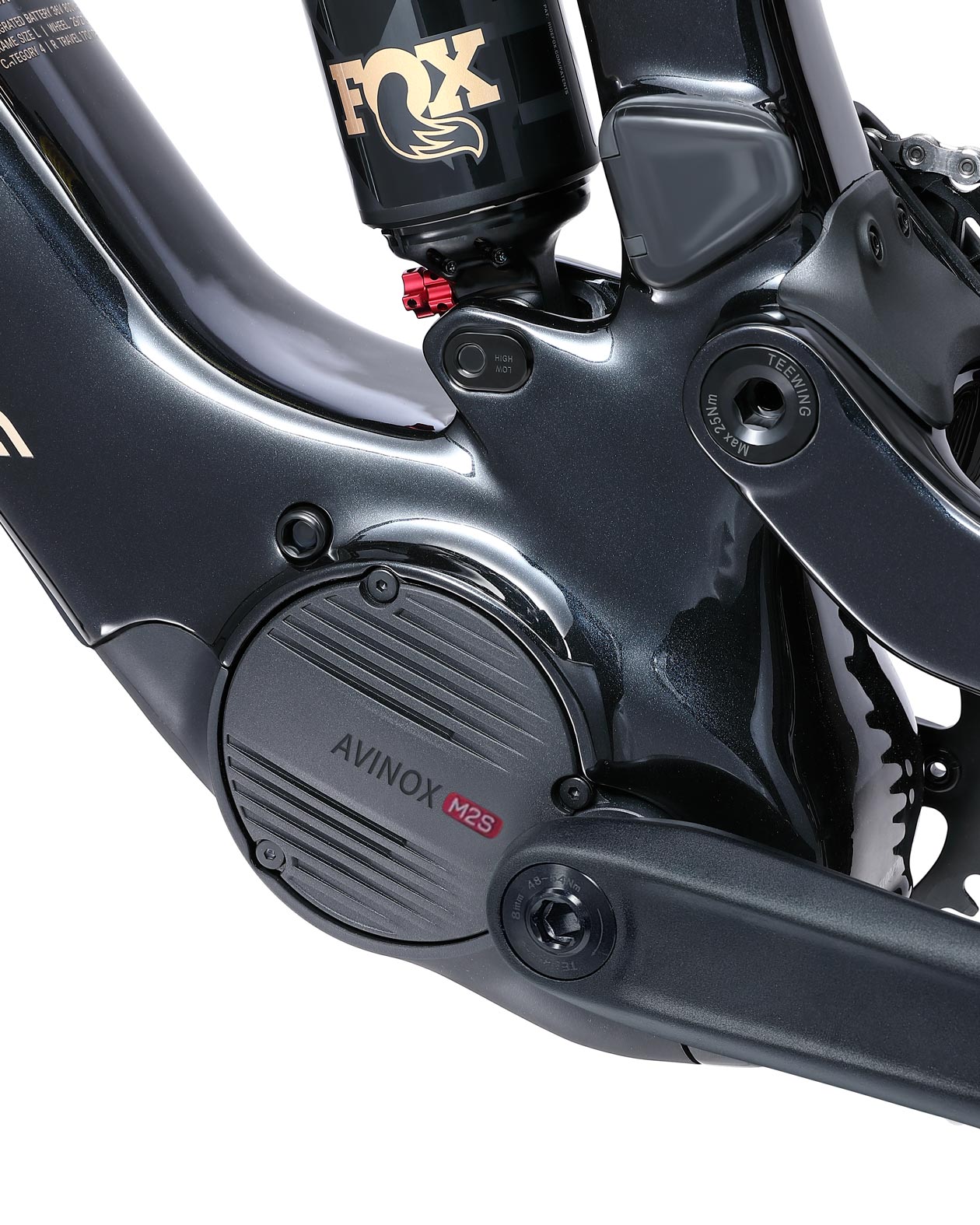

2 complete builds of the Teewing Flux will be offered (along with frameset options in certain markets), both sharing the same full carbon CAT 5 frame, powerful Avinox M2S motor system, integrated 800Wh battery, 4-piston brakes, and fit-for-purpose DoubleDown tyres.

FRAME FEATURES

Frame weight: 3000g (with hardware w/o rear shock)
Adjustable geometry
Adjustable chainstay
Mixed wheel or full 29in
CAT 5 rated frame
Internal cable routing (with rattle free internal cable and hose channels)
1 x Bottle mount
1 x Accessory mount
Rubber downtube, chainstay, and main pivot protection
UDH hanger
Double row Horst link bearings
Integrated Avinox display
Torque rating on all bolts

Mullet or Full 29in

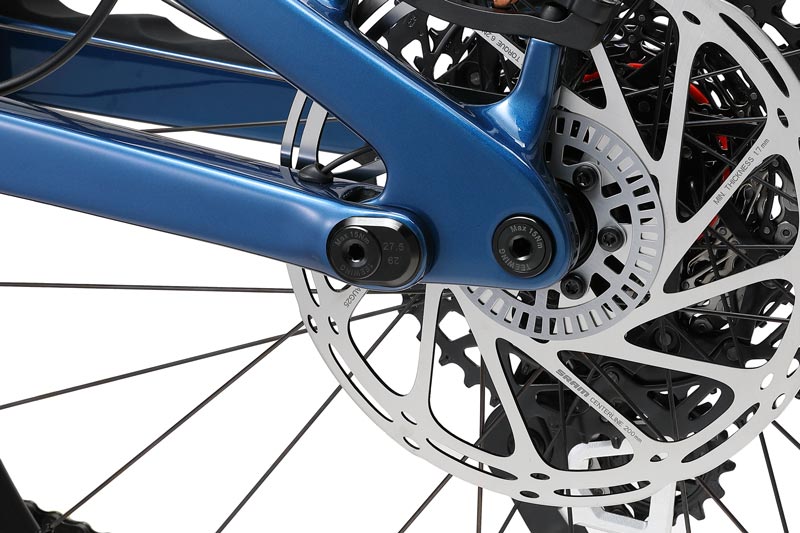

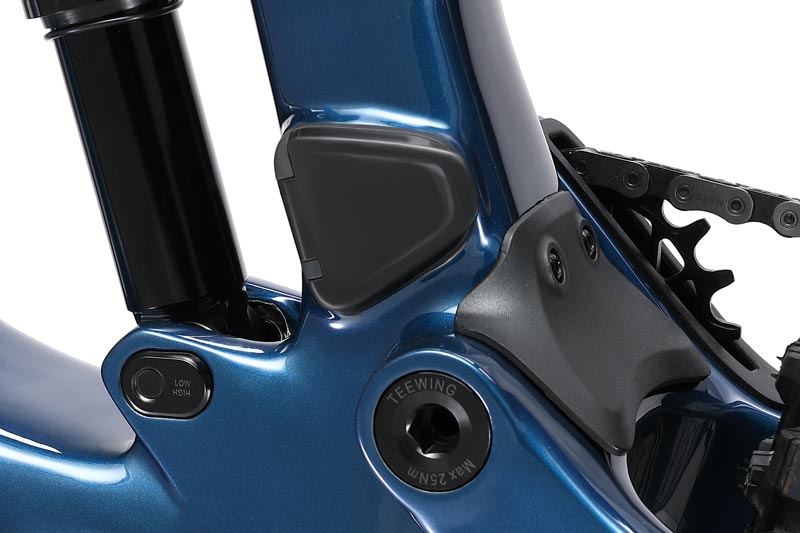

With dual flip-chips, the Flux can switch between high and low geometry, while a Horst link flip-chip adjusts chainstay length and bumps rear travel from 170mm to 178mm. It also allows the use of a SRAM UDH hanger—so no worries there

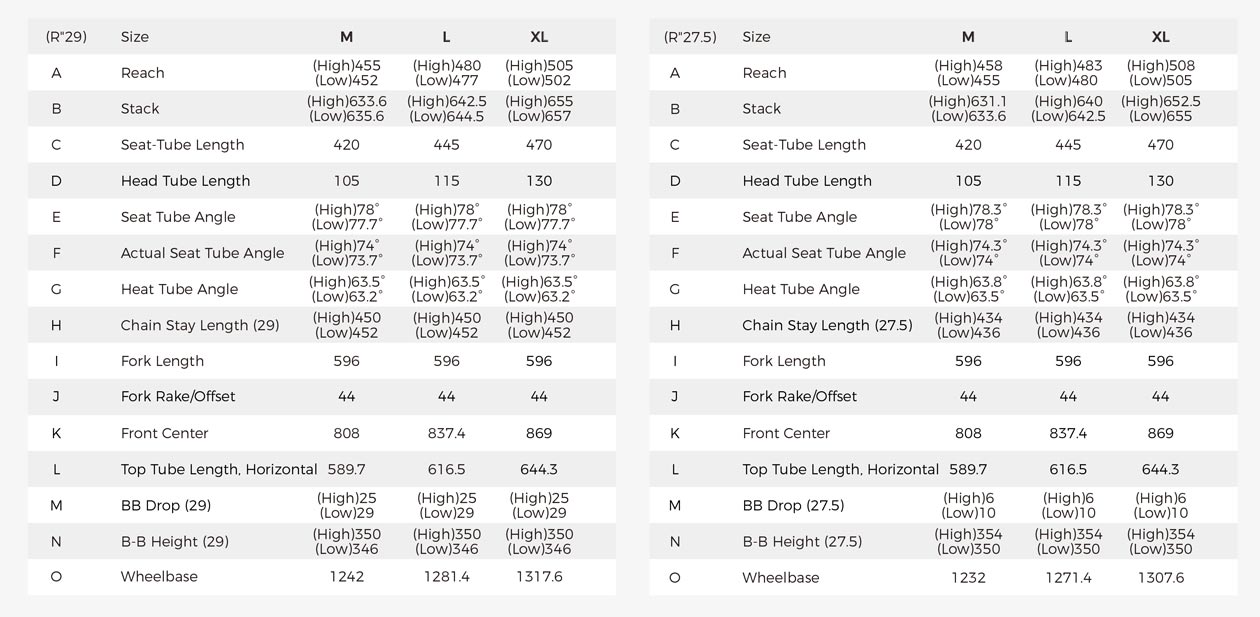

High or Low

In the low setting the seat tube angle sits at 77.7° (29”) or 78° (27.5”), with a head angle of 63.2° / 63.5°. Flip to high and that steepens to 78° / 78.3° and 63.5° / 63.8°.

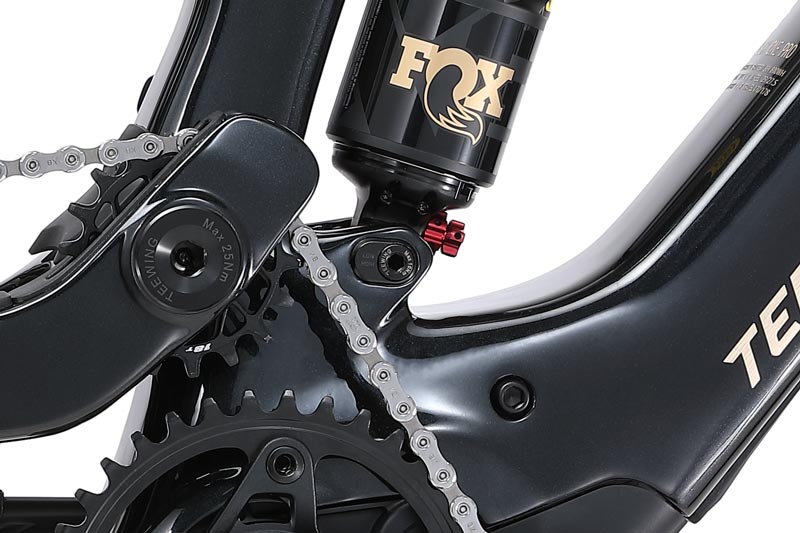

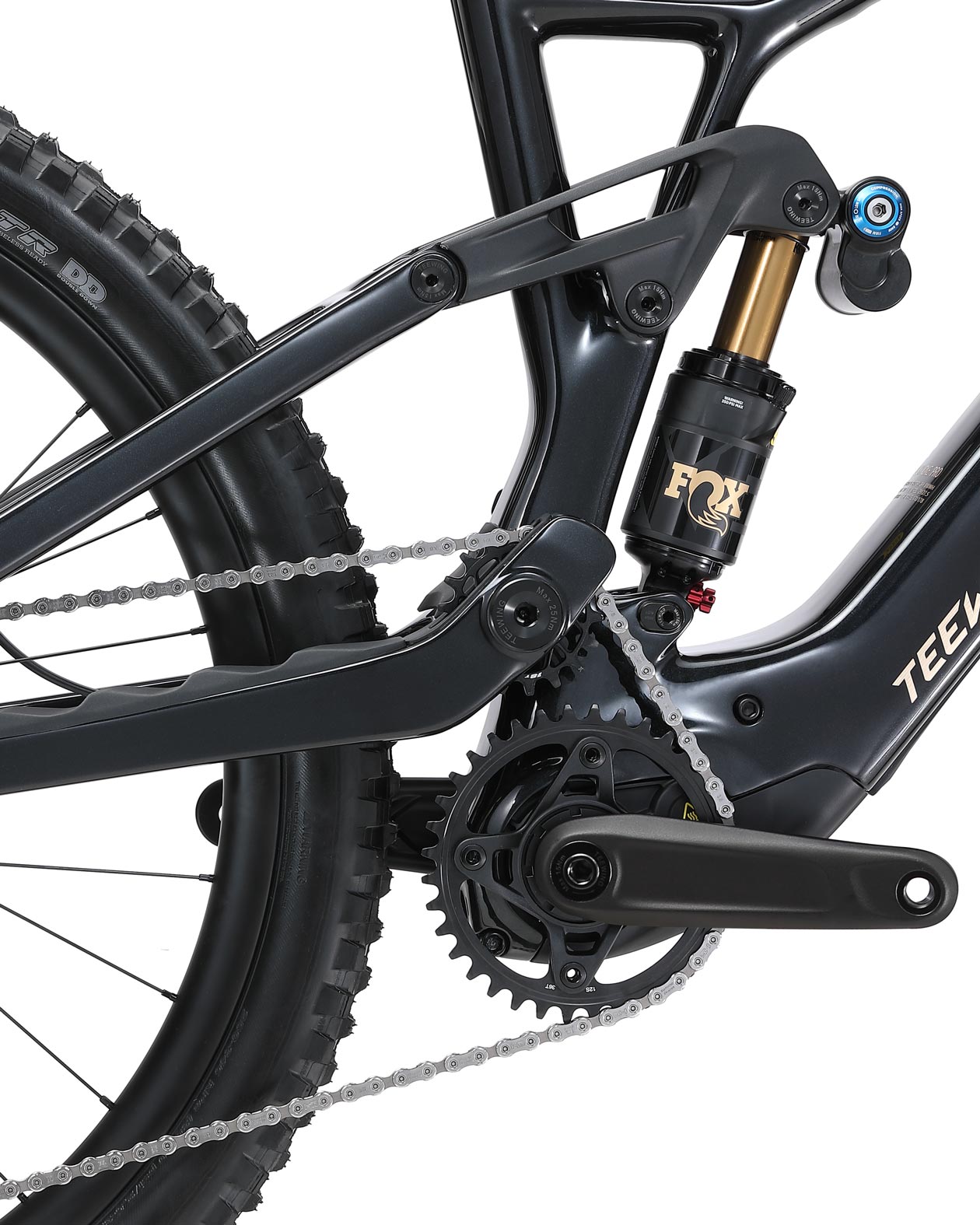

HIGH-PIVOT SUSPENSION

Being a (up to) 178mm travel bike, we didn’t want to simply reuse the 4-bar suspension system we first developed for the Turbo Force trail bike. Instead, we started from scratch to design a platform that offers incredible downhill performance and consistency, combined with the ability to provide amazing small bump support and traction when climbing.

After testing various designs our engineering team reached the conclusion that a high-pivot suspension design with an idler would give the characteristics we were after, giving the Flux that feel of a full-on DH race rig when you let off the brakes, but remaining supportive and composed with plenty of traction and grip when climbing back to the top for another run.

Through testing with riders across the UK, USA, Australia, New Zealand and Canada, we’ve been able to build a suspension platform and kinematics that builds confidence through consistent and predictable behaviour.

“The high-pivot mullet setupworked really well forcornering, and the rear endjust tracks the groundproperly. It feels planted,especially when things getrough.

On steep, rough terrain, it’ssuper forgiving. Honestly, itrides more like a downhillbike” – Josh Gleave

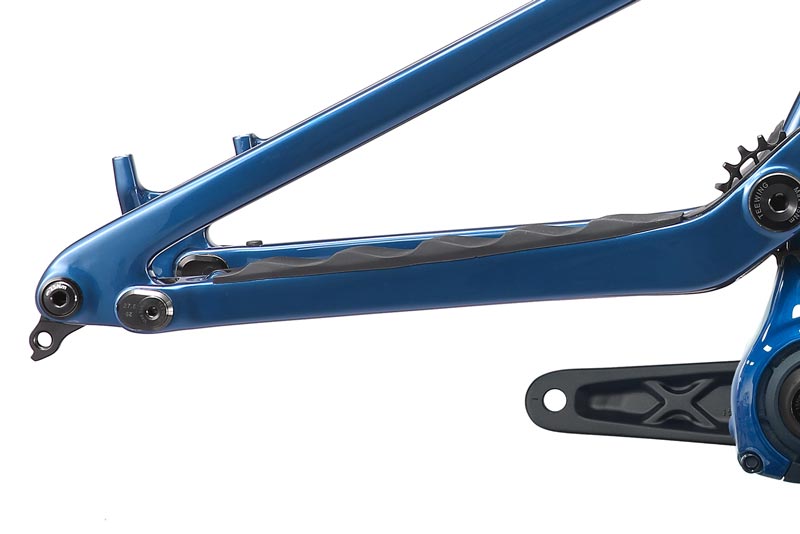

Frame Protection

To match the quieter, more powerful Avinox M2S, we’ve added extensive chainstay and downtube protection to keep things silent and looking fresh. For extra peace of mind, RideWrap kits are already available.

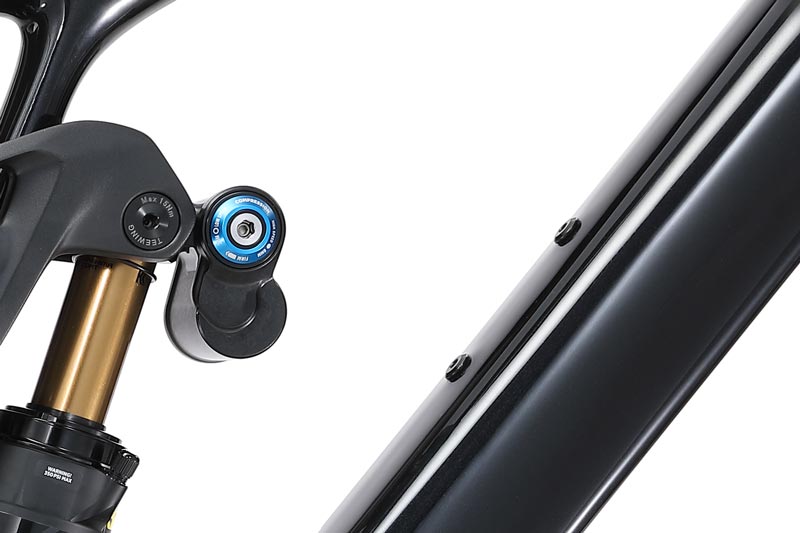

Accessory Mounts

With more power and range to explore, we’ve made room for a water bottle and added an accessory mount under the top tube so you can keep Hydrated and have your tools with you just in case!

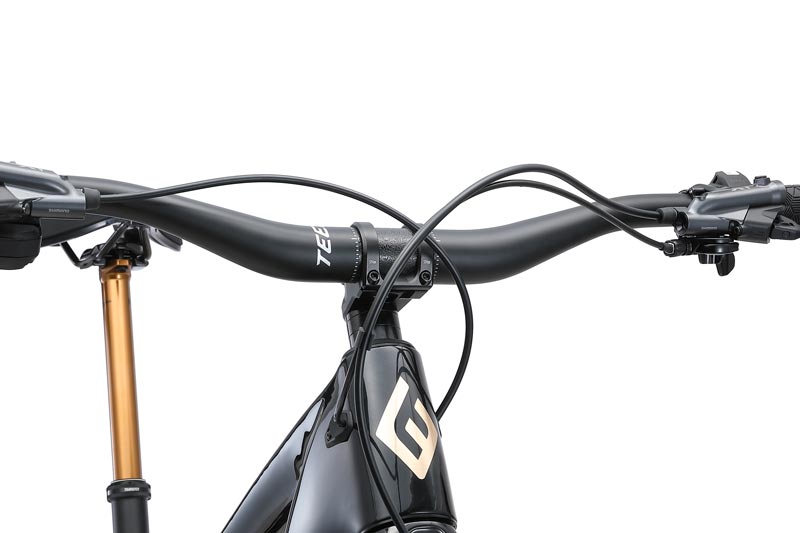

Trouble free cable routing

Internal cable routing runs through large carbon sleeves—keeping things quiet, clean, and easy to maintain. We’ve paid close attention to dropper routing, so nothing gets jammed and adjustments are nice and simple.

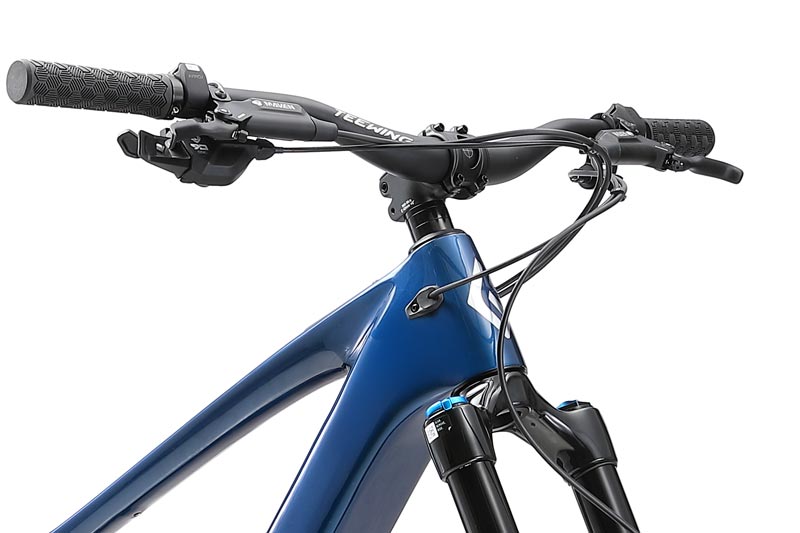

Headset cable routing...

Don’t worry—we don’t subscribe to headset cable routing.

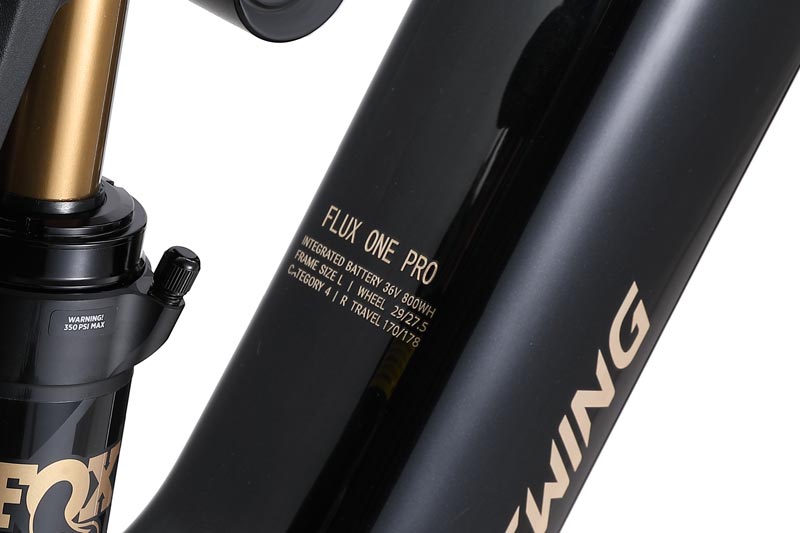

CAT 5 Frame

The full carbon CAT 5* frame features low standover, comes in Medium, Large and XL, sizes and houses a large integrated 800Wh battery.

Magnetic, sealed charger cover

An updated magnetic, weather-sealed charger cover keeps the port protected in all conditions.

*While the Teewing Flux Frame is tested and rated to CAT 5 standards, some of the complete bike components are CAT 4 level. This iswhy Flux frames are labelled as CAT 4 and complete bikes are only CAT 4 rated.
