PIVOT TRAILCAT SL REVIEW

September 20, 2026

The Pivot Trailcat SL is a bike that sits between the Mach 4 SL and the longer travel Switchblade in the brands lineup. While the geo is more on the conservative side compared to other bikes on test, Pivot has a built a well-rounded package for riders looking to tackle more undulating terrain with technical climbs.

These intensive group reviews would not be possible without some amazing partners. Their support ensures our entire crew can ride all these bikes on a variety of terrain to establish real-world data for our audience.

SUPPORTING BRANDS

Thule handled all our bike transportation and gear storage needs, coming in handy with all the different bikes we had while traveling to different zones over the several months of testing. On the daily we used the Thule Verse, their two-place bike rack with an integrated work stand (which was super handy). For our big shuttle days we used the Thule Revert, a 6-place vertical rack which helped us efficiently transport nearly all the bikes on-test. We also received one of the best MTB gear bags in the game, the Thule Roundtrip duffle. It was the perfect bag to store all our gear and the Thule Chasm kept all our spare parts in one place. Out on the trail, our crew each received a Thule Rail hip pack, ensuring snacks, tools and essentials were always on hand.

Delium provided us with our control tires, balancing rolling efficiency and grip through our dry summer conditions. We opted to run the Steady up front and the Fast out back, both in the all-around construction. We ran these tires at 23psi up front and 26psi out back with no flats or rim dents and a surprising amount of traction on tap.

We also wanted to keep our touch points consistent and partnered with SDG Components. SDG supplied us with their new Thrice Open Core Grip and Bel Air V3 Overland saddle. These proved to be the perfect combo for long days out on the trail and we were stoked to finally have a group test where testers didn’t have to complain about OE grips or uncomfortable saddles.

ABOUT THE PIVOT TRAILCAT SL

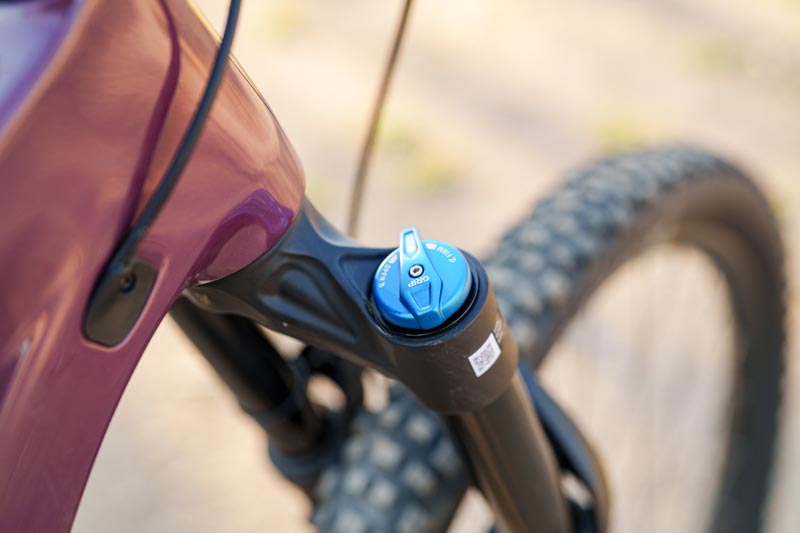

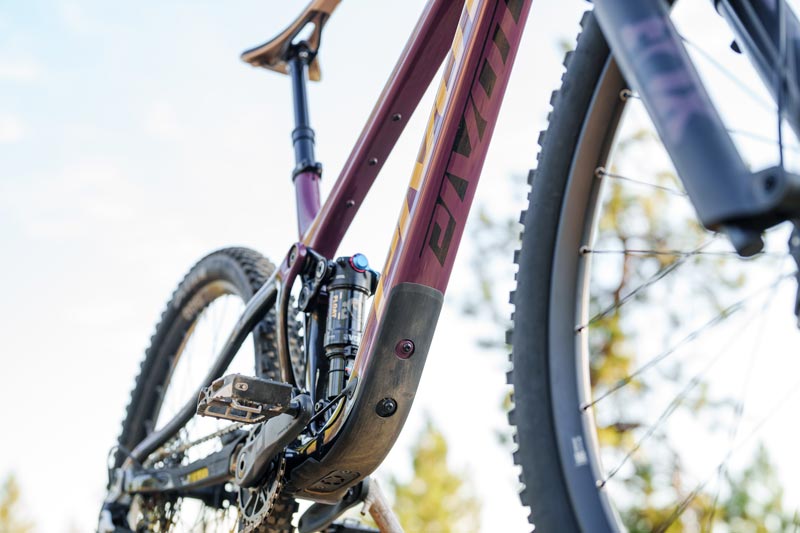

The Pivot Trailcat SL delivers 120mm of DW link driven suspension out back, but this can be bumped up to 135mm with a larger shock and rotating the lower shock mount turning it into the Trailcat LT. Up front is a Fox 36SL at 140mm, only one of 2 bikes utilising this chassis and the longest travel fork in our group.

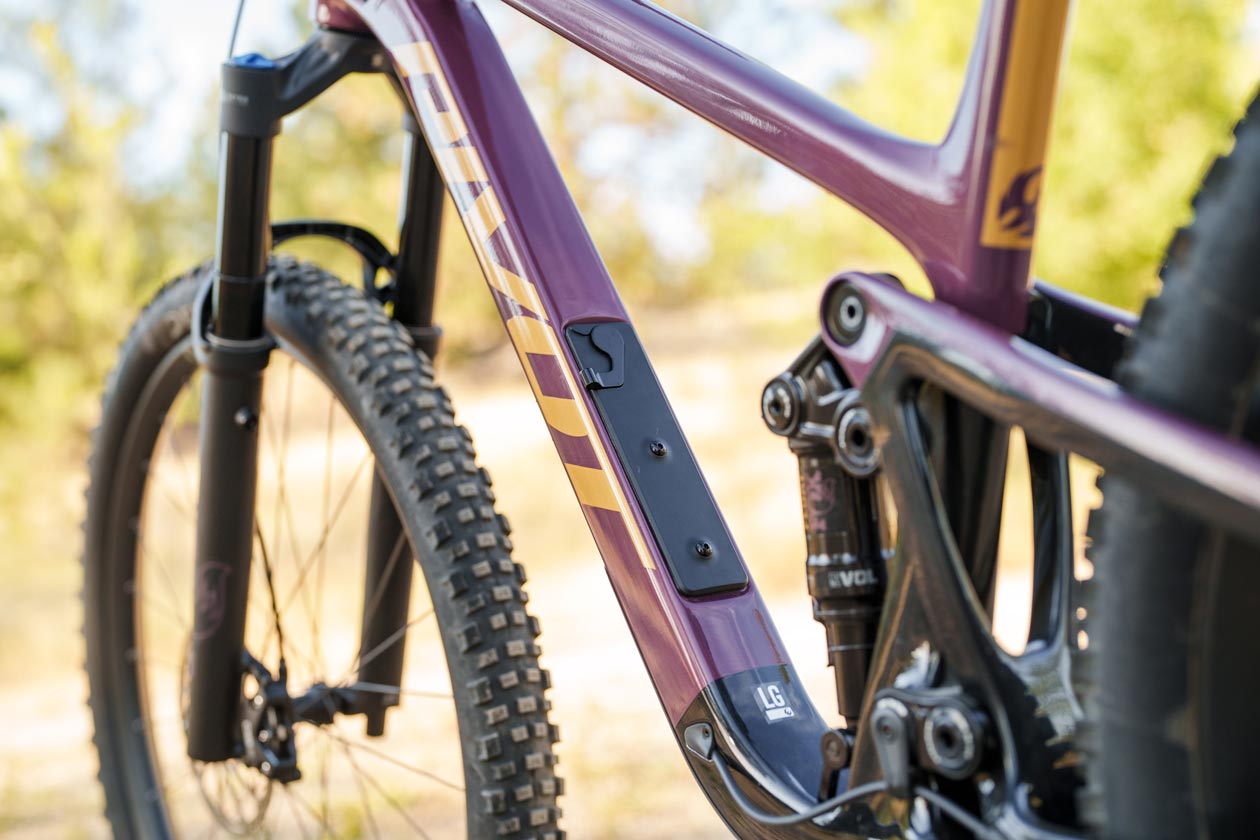

The frame does have a flip chip to modify the geometry and accommodate for a 27.5” rear wheel. The frame also features a downtube storage compartment with included storage bag, bosses under the top tube for accessory storage and loads of rubber protection with an additional built in mud fender. As with all other Pivot bikes the rear end is Super Boost rear spacing and cable routing is fully guided.

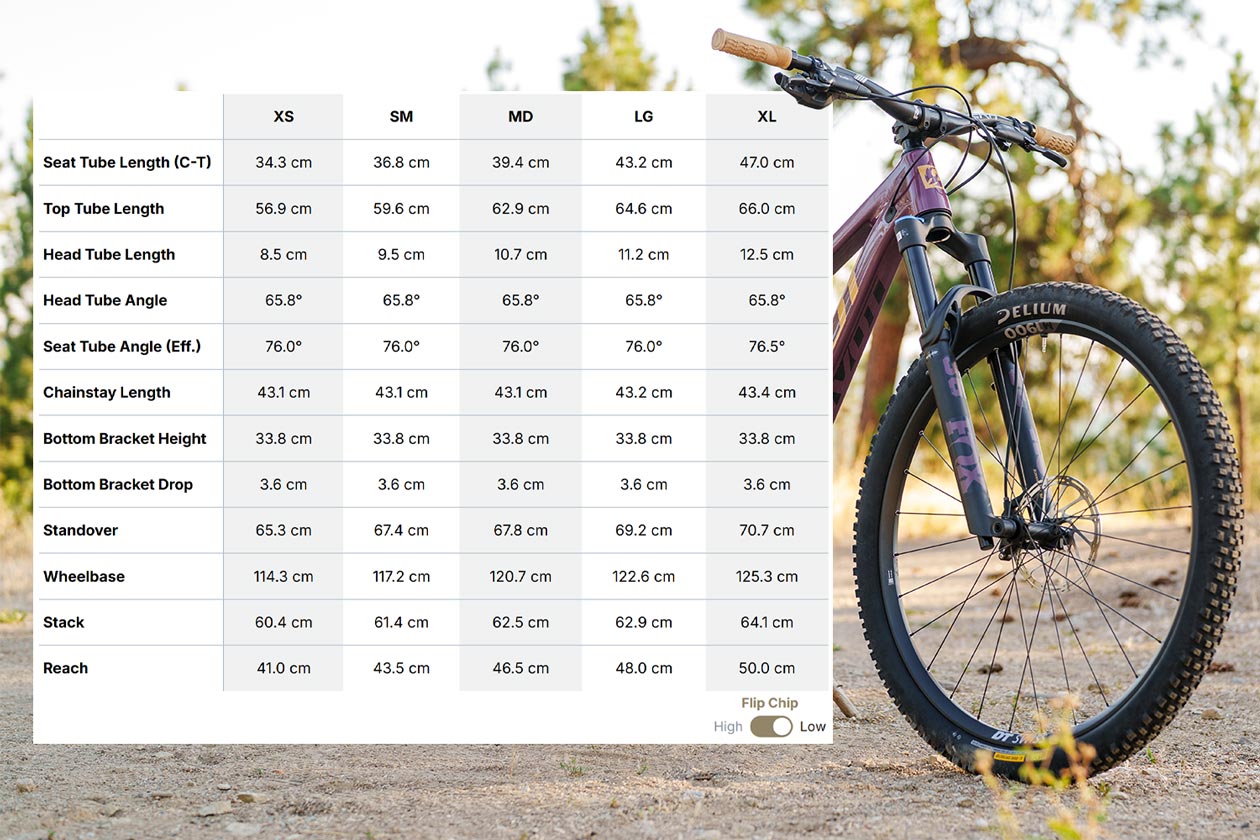

PIVOT TRAILCAT SL GEOMETRY

As with all other bikes on test we opted to go with a size large that has a reach of 480mm, Pivot offers the Trailcat in sizes Small – Extra Large. The biggest stand out in the geometry department for the Trailcat is it’s slack 65.8º seat tube angle paired to a short 432mm chain stay. The headtube angle is the steepest on test at 65.8º.

PIVOT TRAILCAT SL BUILD OPTIONS

Pivot offers many different build kits for the Trailcat SL, our Eagle 70/90 build lands at $6,499 spec’d with Fox performance level suspension, a mechanical SRAM 70/90 Transmission combo and SRAM DB8 brakes. The top spec AM XX build lands in at $12,999, our build on test is Pivots entry level price point.

RIDING THE PIVOT TRAILCAT SL

CLIMBING PERFORMANCE | The Pivot Trailcat’s DW Link suspension platform delivers one of the most if not the most comfortable and traction rich ride feels out of the group of bikes we have. It does this while also not feeling overly gushy when you are out of the saddle and putting the power down. This is easily our favourite attribute about the Trailcat.

Another major standout on the Trailcat SL is the very slack feeling seat tube angle, while not that much slacker than its next closest competitor, it puts you noticeably off the back of the bike. This combined with the short chainstays can make the front wheel feel light on steeper pitches. For shorter riders this may not be as much of an issue, but it is worth noting it was something that Kyle at 5’8” tall brought up without anyone else prompting him.

The steep headtube angle and short rear end however does make for a bike that climbs very well in tight technical terrain, which makes sense as the bikes are designed in the land of tight technical climbing, Phoenix Arizona. Pair this with the ample amount of traction and you have a bike that can winch you up just about anything.

DESCENDING PERFORMANCE | Turning the Trailcat SL down the hill the supple rear suspension still shines through, the feeling delivered is one of composure. The 120mm out back presents as much more, muting high speed chatter and supporting big drops to flat. Under breaking the bike stays straight and allows you to confidently set up for the next feature. The bike feels very put together, something we have come to really like about all Pivots bikes. They have very strict frame tolerances, and this shines through on the high end feeling of the Trailcat SL.

When the terrain starts to get a bit faster and steeper the head tube angle and short rear end starts to hold you back. The bike can feel a bit nervous at times, especially as the rear suspension feeling wants to keep you pushing for more speed. But on tighter tech trails these attributes do make the Trailcat SL a joy to ride, this is just not the terrain I and the test riders gravitate towards.

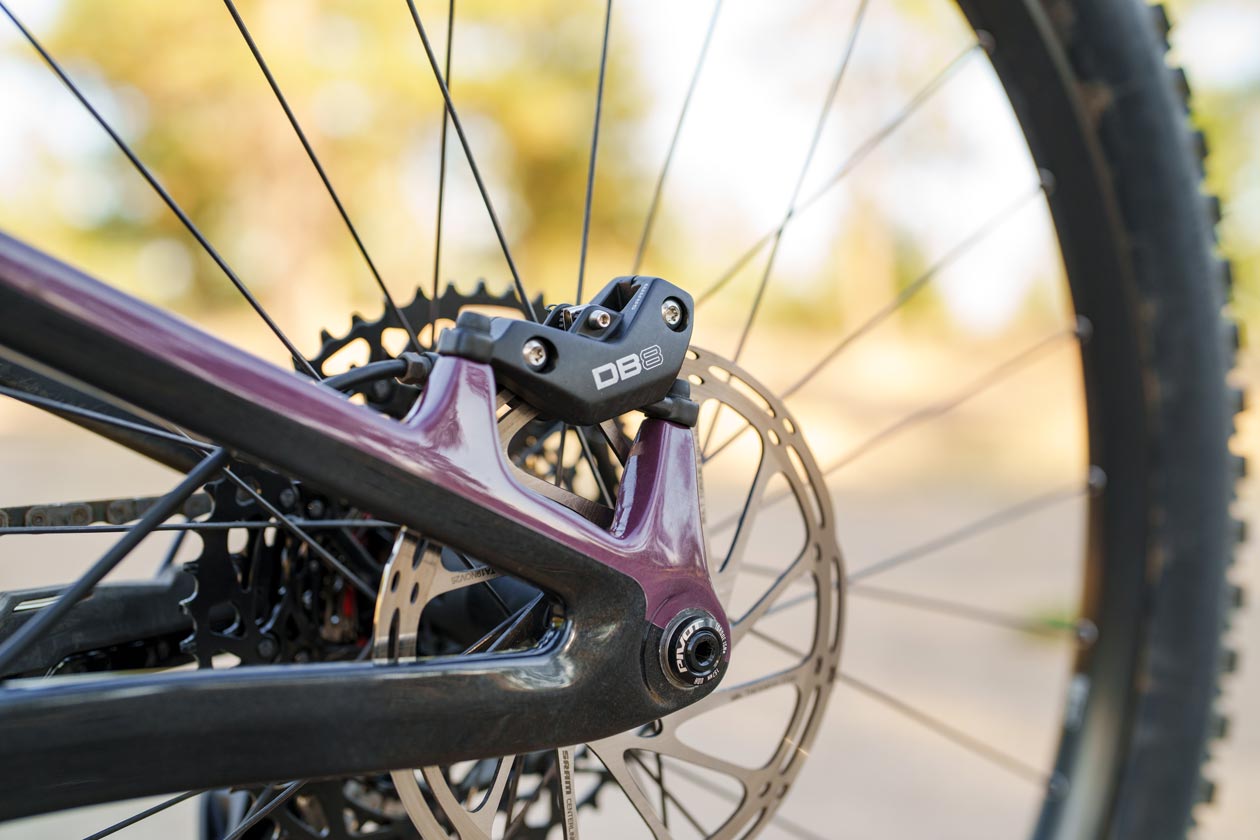

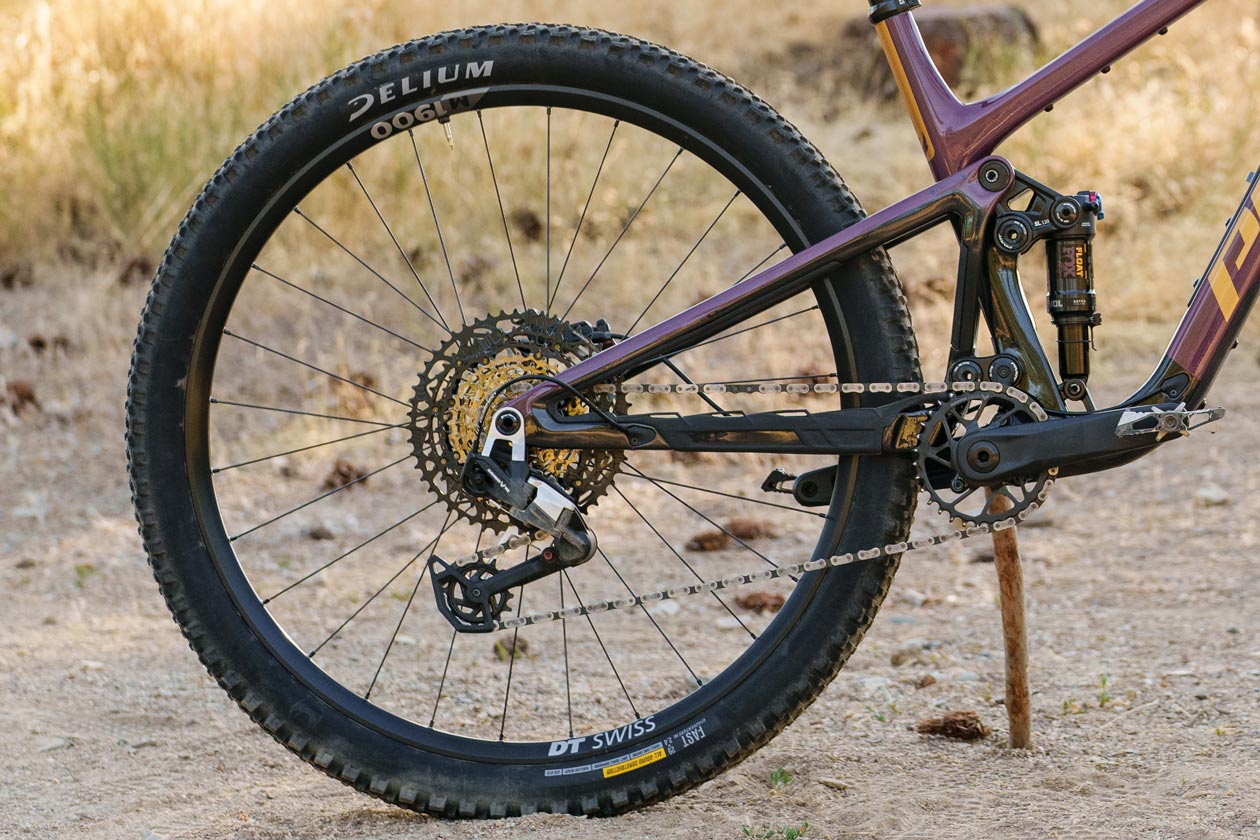

The frame and components spec works well with some more braking power to be desired, the SRAM DB8’s really do not offer the amount of bite needed to inspire confidence. On the other hand, all riders commented on how well the Mechanical SRAM Eagle 70/0 combo worked under load and remined dead silent, something that cannot be said for the Shimano XT Di2 drivetrains and well more than twice the price.

HOW DID IT COMPARE?

The Trailcat SL stands out from the rest of the pack with it’s more conservative geometry which is by no means a bad thing so long as that is what you are after. It rivals the Intense Spider in the rear suspension feel département, more composed and muted rather than active and energetic. It is most closely compared to the Trek Top Fuel, less composed at speed but a similar amount of traction delivered in a different feeling platform.

The Wolf’s Last Word

The Pivot Trailcat SL is a great bike if you know what you are looking for, our crew found the geometry to really hold this bike back on the trails we like to ride most. The rear suspension feel is nothing short of phenomenal, it is a 120mm bike masking as a 140mm, very impressive. Riders who are looking for a more conservative geometry set will really enjoy the Trailcat SL.

WHO SHOULD BUY THE PIVOT TRAILCAT SL?

If you favour tight technical climbs the Trailcat SL is going to be a killer option especially if you are not a long leg rider. The Trailcat is a bit harder to recommend than other bikes in terms of what rider befits most, similar to that of the Forbidden Reya. Both bikes are at either end of the spectrum and are for riders who know what they want.

Price: $6,499
Weight: 32.17lbs (As Tested with Crankbrother Mallet DH and Delium Tires )
Website: Pivotcycles.com
